Stop Light Switch

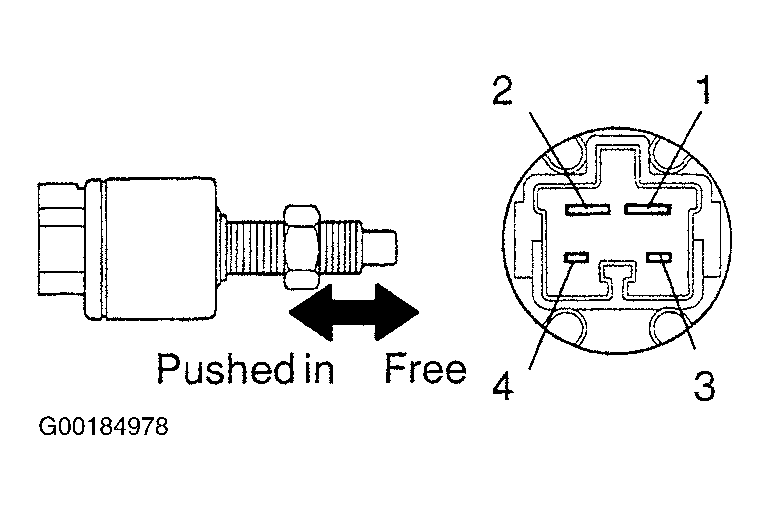

Inspect the stop light switch continuity. See Fig 1. See INSPECTING STOP LIGHT SWITCH CONTINUITY table. If the continuity is not as specified, replace the switch. See STOP LIGHT SWITCH under REMOVAL & INSTALLATION.
| Switch Position | Tester Connection | Specified Condition |
|---|---|---|
| Switch Pin Free (Pedal Depressed) | ..... | No Continuity |
| Switch Pin Pushed In (Pedal Released) | 1 & 2 | Continuity |
| Switch Pin Free (Pedal Depressed) | ..... | No Continuity |
| Switch Pin Pushed In (Pedal Released) | 3 & 4 | Continuity |
