COMPONENT LOCATIONS

Component	Location
Anti-Theft Horn	Fig 1
Anti-Theft Indicator	Fig 1
Body ECU No. 1	Fig 1 & Fig 3
Body ECU No. 2	Fig 2 & Fig 4
Brake Fluid Level Warning Switch	Fig 2
Clock	Fig 2
DOME Fuse	Fig 3
Driver Buckle Switch	Fig 2
ECU-B2 Fuse	Fig 3
ECU-IG Fuse	Fig 4
Fog Light Relay	Fig 2
Front Personal Light	Fig 2
Hazard Switch	Fig 1
Hood Courtesy Switch	Fig 1
Horn	Fig 1
Key Unlock Warning Switch	Fig 2
Lamp Failure Sensor	Fig 2
Light Control Sensor	Fig 2
Light Control Switch	Fig 2
Luggage Courtesy Switch	Fig 1
Luggage Door Key Lock & Unlock Switch	Fig 1
Luggage Opener Motor	Fig 1
Luggage Opener Switch	Fig 1
Mirror Switch	Fig 2
P FR DOOR Fuse	Fig 5
Parking Brake Switch	Fig 1
Passenger Buckle Switch	Fig 1
Pattern Select Switch	Fig 1
RADIO NO. 2 Fuse	Fig 4
Seat Belt Warning Occupant Detection Sensor	Fig 1
Stop Light Switch	Fig 2
Wireless Door Lock Buzzer	Fig 1
Wireless Door Lock Tuner	Fig 1

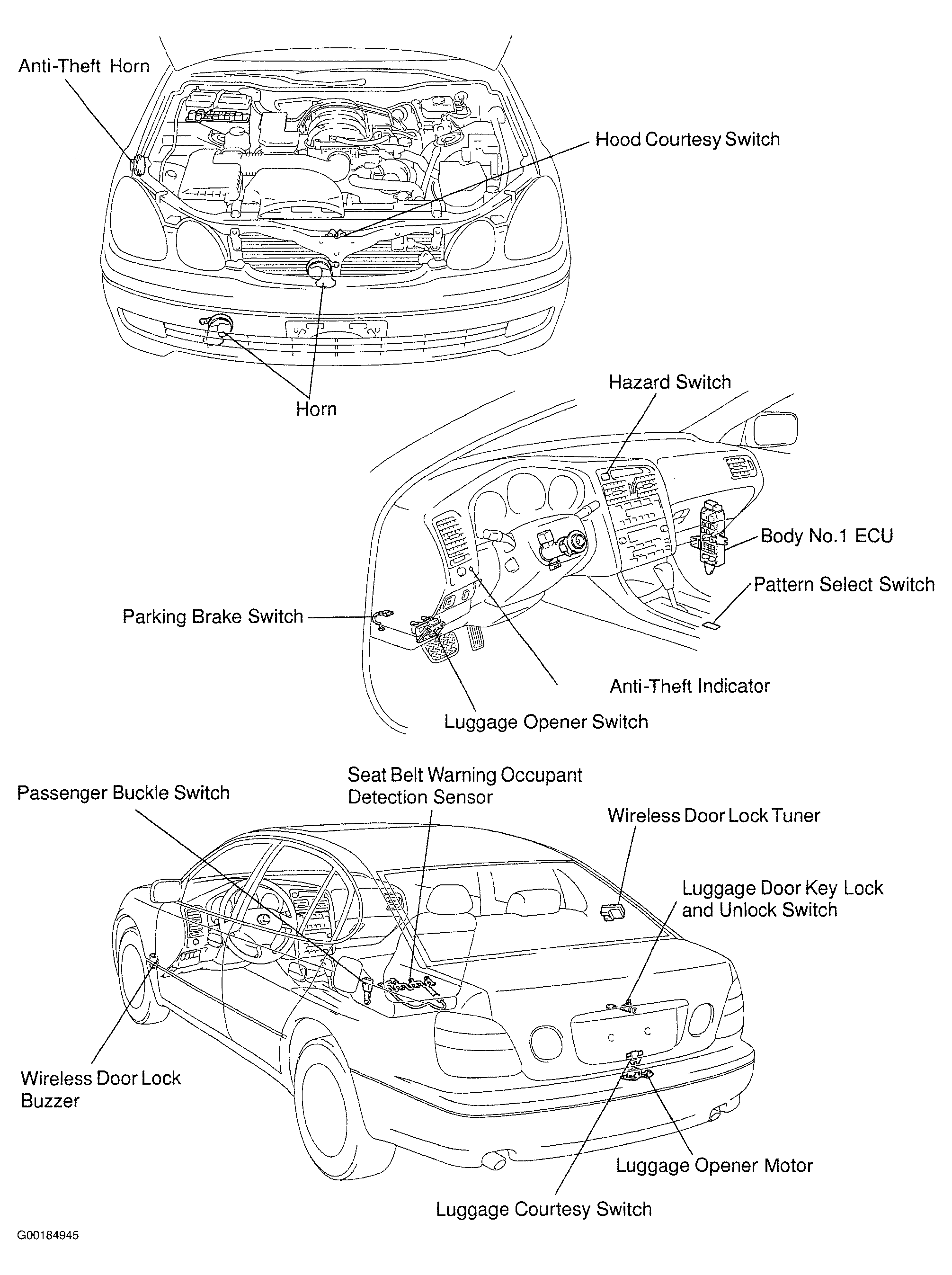

Fig 1: Identifying Body ECU No. 1 Control System Component Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
