2003 Lexus GS 300FACTORY OEM SERVICE PROCEDURE
Sliding Roof System: Inspection
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT ROOF CONSOLE BOX ASSY

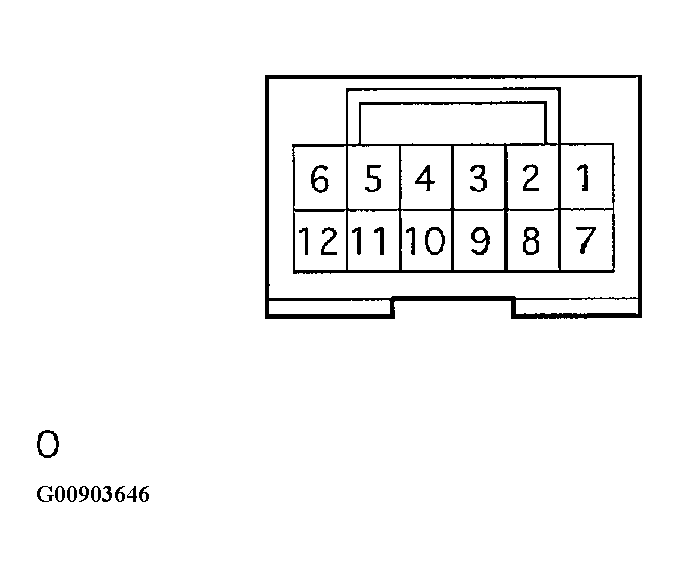

- Inspect the slide roof motor switch continuity.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

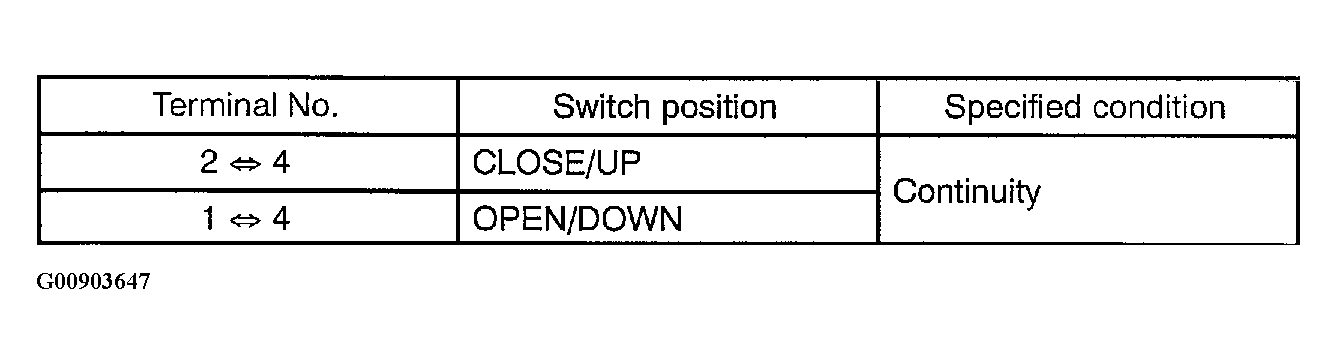

Standard:
If continuity is not as specified, replace the roof console box.
- Inspect the slide roof motor switch continuity.
