2003 Lexus ES 300FACTORY OEM SERVICE PROCEDURE

Section 259 (Intake Air Control System): Replacement: 3MZ-FE

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INTAKE AIR CONTROL VALVE ASSY NO. 2
1. Remove the 3 bolts and nut.
2. Rotate the lever to the closed position as shown in Fig 1 and pull out the IAC valve.

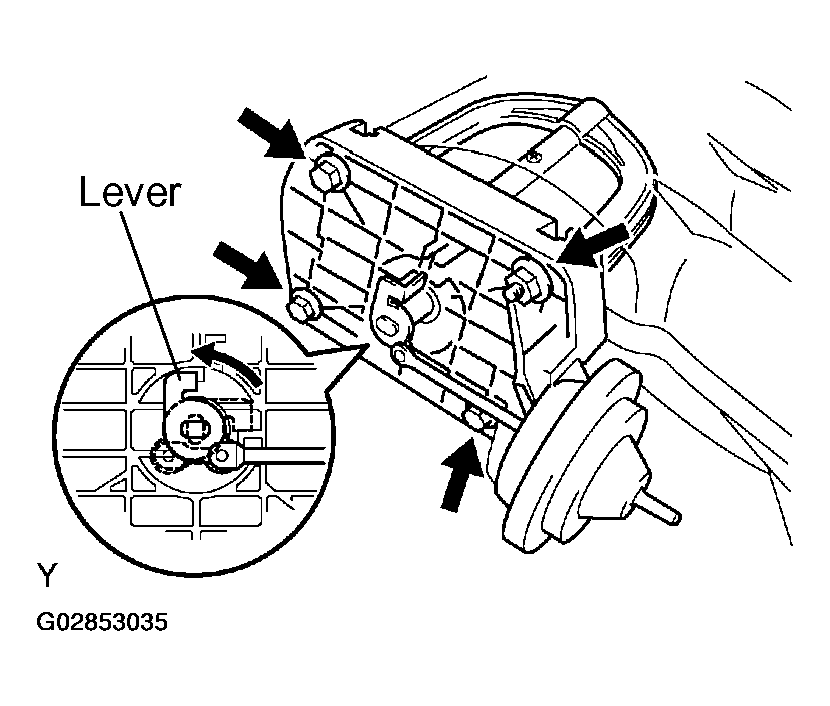

  Fig 1: Rotating Lever To Closed Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the gasket from the intake air surge tank.
INSTALL INTAKE AIR CONTROL VALVE ASSY NO. 2
1. Install a new gasket to the intake air surge tank.
2. Install the IAC valve with the 3 bolts and nut.
  Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
