INSPECT MASS AIR FLOW METER

Check the output voltage.
1. Apply battery voltage across terminals 1 (+B) and 2 (E2G).
2. Using a voltmeter, connect the positive (+) tester probe to terminal VG, and negative (-) tester probe to terminal E2G.
3. Blow air into the MAF meter, and check that the voltage fluctuates.
Measure the resistance between terminals 4 (THA) and 5 (E2).
Standard:

AIR FLOW METER CHECKING REFERENCE

Condition	Specified Condition
-20 °C (-4°F)	13.6 to 18.4 kΩ
20°C(68°F)	2.21 to 2.69 kΩ
60°C(140°F)	0.493 to 0.667 kΩ

If the result is not as specified, replace the MAF meter.

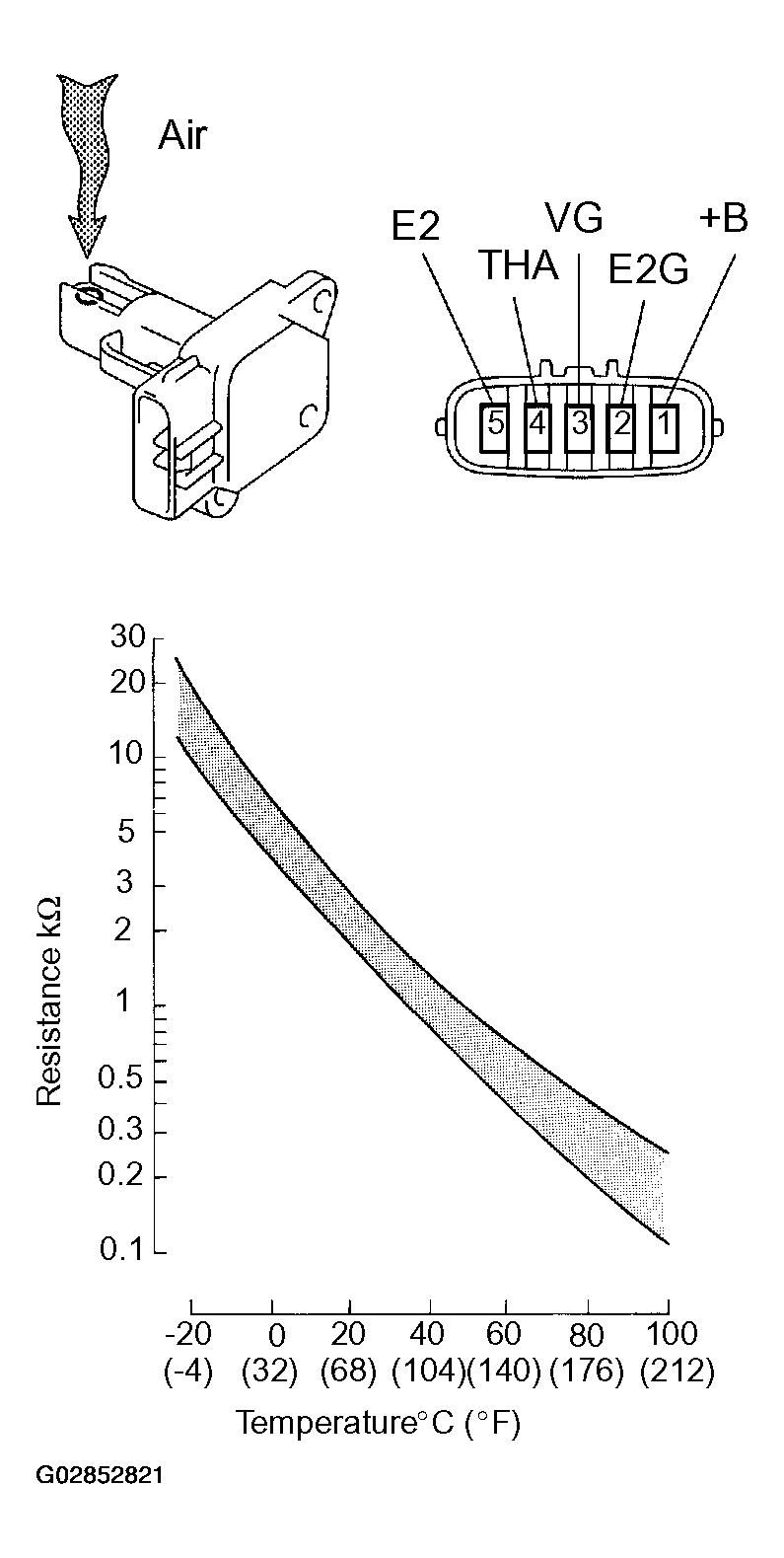

Fig 1: Inspecting Mass Air Flow Meter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSY
1. Measure the resistance between the terminals.
  Standard: 6.9 to 7.9 Ω at 20°C (68°F)

  If the result is not as specified, replace the OCV assy.
2. Connect the battery's positive (+) lead to terminal 1 and negative (-) lead to terminal 2, and check the movement of the valve.

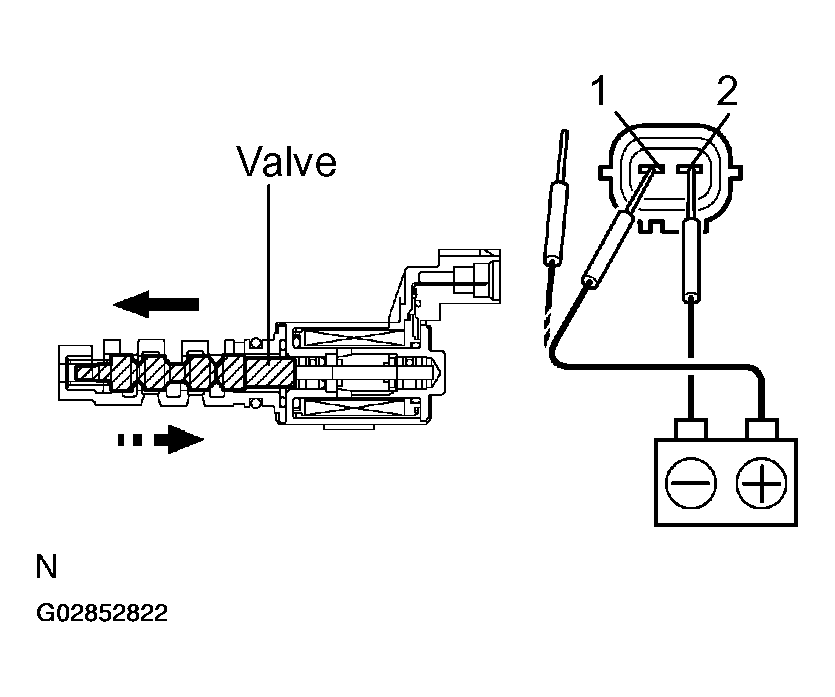

  Fig 2: Connecting Battery To Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Confirm that the valve moves freely and does not become stuck in any position.

If necessary, replace the OCV assy.

If the valve cannot return properly because of foreign matter, a small pressure leak in the advanced direction may occur and a DTC will be output.

INSPECT ACCELERATOR PEDAL ASSY (ACCELERATOR PEDAL POSITION SENSOR)

Measure the resistance between the terminals.
Standard:

TESTER CONNECTION AND CONDITION-SPECIFICATION

Tester Connection	Specified Condition
2(VPA2)-3(EP1)	5.0 kΩ or less
5(VPA1)-1 (EP2)	5.0 kΩ or less
6(VCP1)-3 (EP1)	2.25 to 4.75 kΩ
4 (VCP2) - 1 (EP2)	2.25 to 4.75 kΩ

If the result is not as specified, replace the pedal assy.

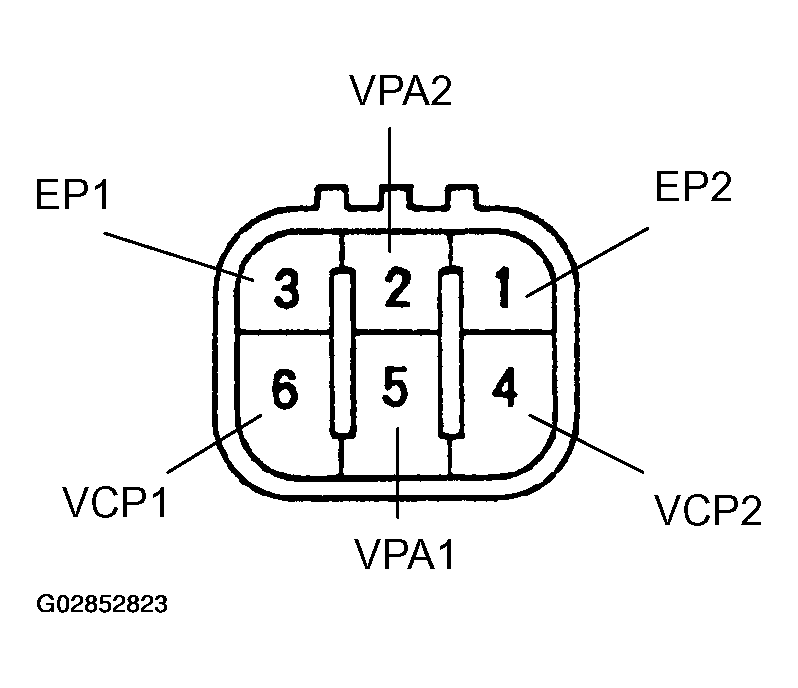

Fig 3: Inspecting Accelerator Pedal Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT THROTTLE BODY ASSY

Measure the resistance between the terminals.
Resistance:

TERMINALS CONDITION AND RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
2 (M+) - 1 (M-)	20°C(68°F)	0.3 to 100 Ω
5 (VC) - 3 (E2)	20°C(68°F)	1.2 to 3.2kΩ

If the result is not as specified, replace the throttle body assy.

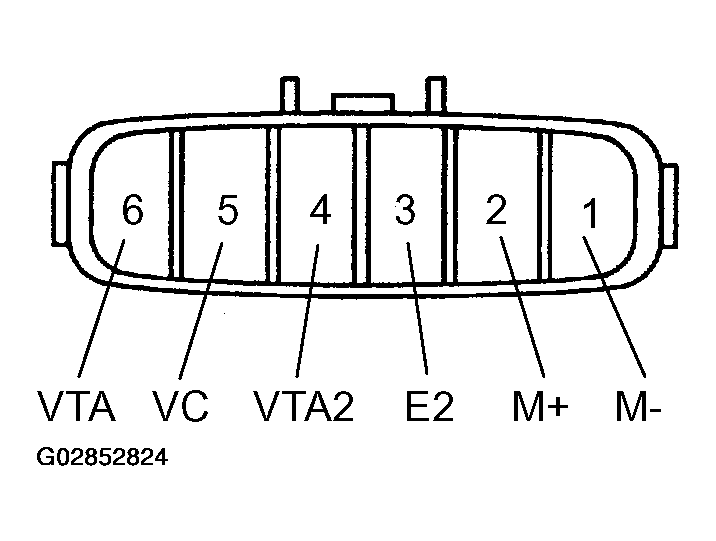

Fig 4: Inspecting Throttle Body Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT ENGINE COOLANT TEMPERATURE SENSOR

Measure the resistance between the terminals.
Standard:

TERMINAL CONDITION AND RESISTANCE SPECIFICATION

Condition	Specified Condition
Approx. 20°C(68°F)	2.32 to 2.59 kΩ.
Approx. 80°C(176°F)	0.310 to 0.326 kΩ.

If the result is not as specified, replace the sensor.

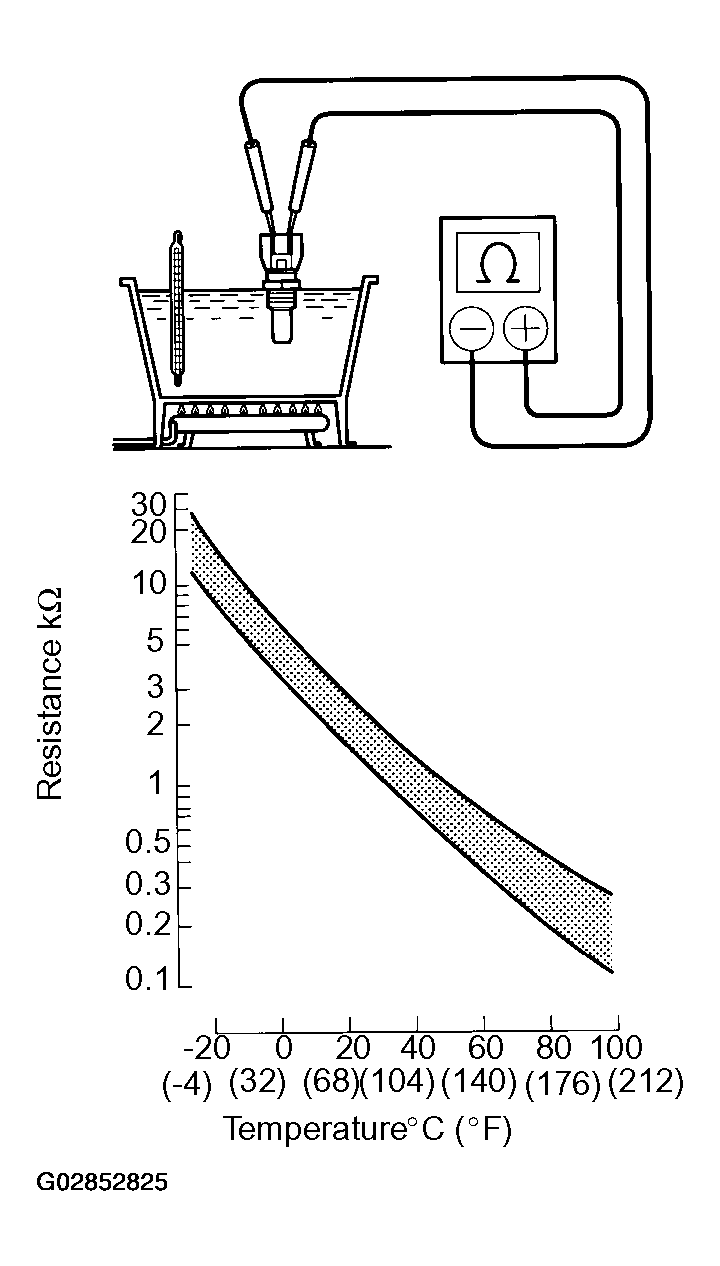

Fig 5: Inspecting Engine Coolant Temperature Sensor
