2003 Lexus ES 300FACTORY OEM SERVICE PROCEDURE
Vehicle Identification And Serial Numbers
WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
- VEHICLE IDENTIFICATION NUMBER

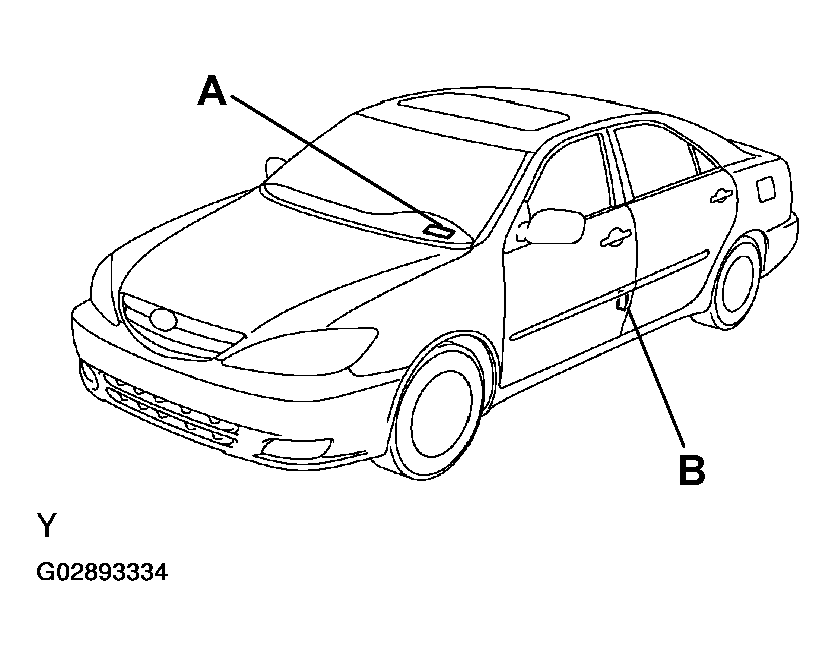

- The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.
A: Vehicle Identification Number Plate
B: Certification Label
- The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.
- FACTORY OF PRODUCTION

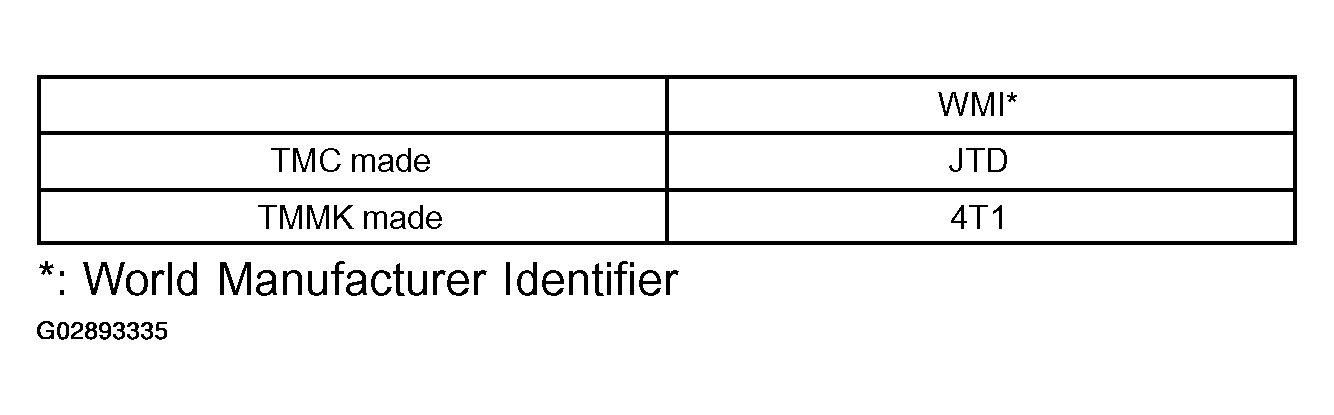

- World manufacture identifier is used to distinguish between TMC and TMMK made vehicles. The first 3 digits and letters of the vehicle identification number shows the world manufacturer identifier.
- ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

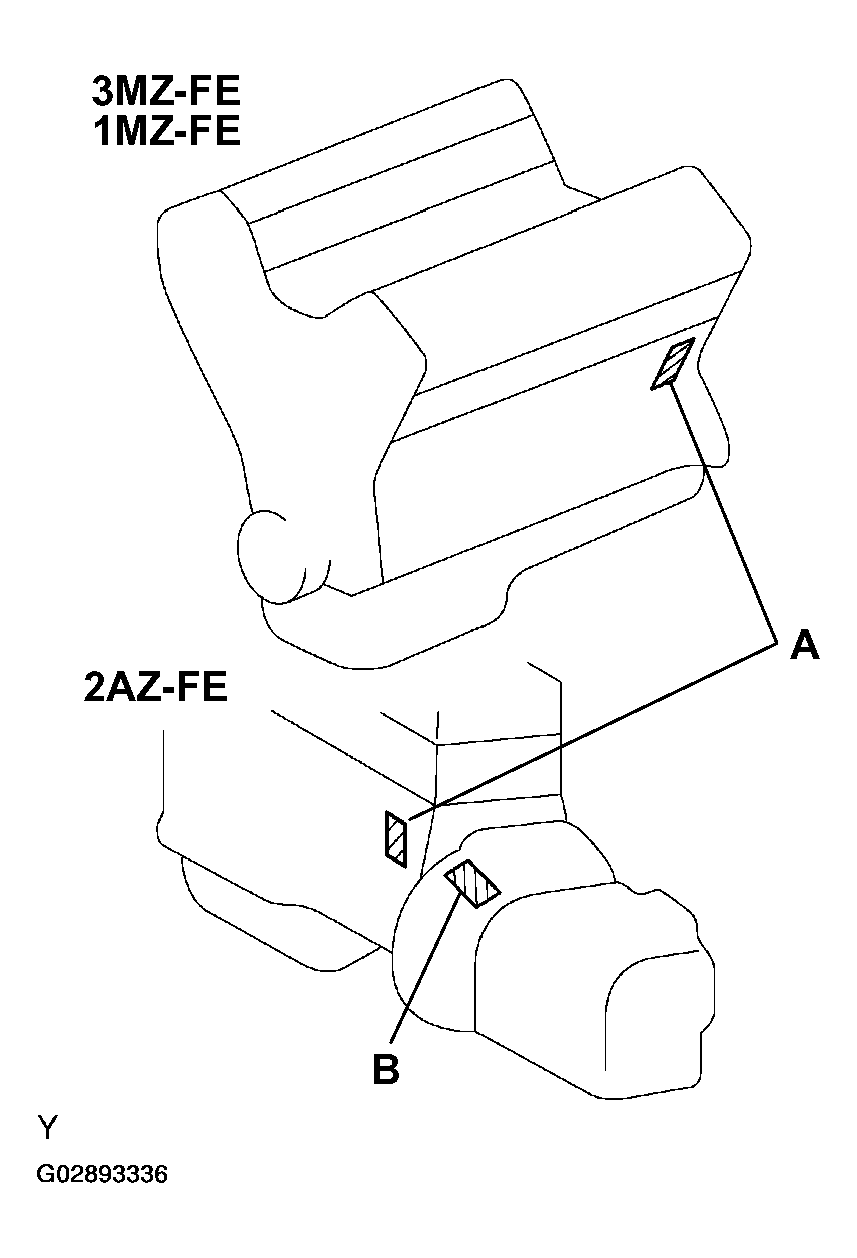

- The engine serial number is stamped on the cylinder block of the engine, and the transaxle serial number is stamped on the housing, as shown in the illustration.
A: Engine Serial Number
B: Transaxle Serial Number
- The engine serial number is stamped on the cylinder block of the engine, and the transaxle serial number is stamped on the housing, as shown in the illustration.
