2003 Lexus ES 300FACTORY OEM SERVICE PROCEDURE

Speed Sensor Front LH: Replacement

HINT:

Replace the RH side by the same procedures with LH side.

REMOVE FRONT WHEEL
REMOVE FRONT FENDER LINER LH
REMOVE SPEED SENSOR FRONT LH
1. Disconnect the speed sensor connector and clamp.

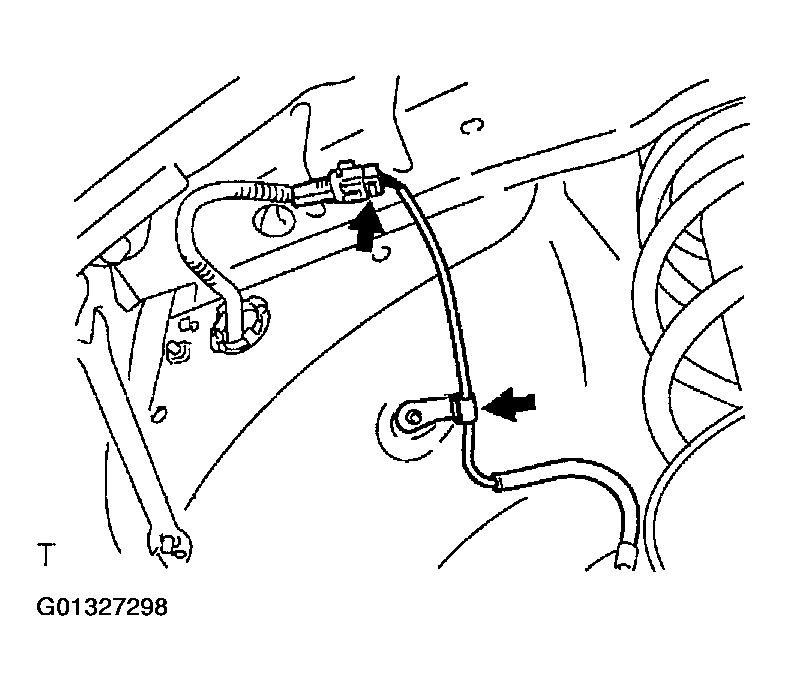

  Fig 1: Disconnecting Speed Sensor Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 clamp bolts holding the sensor harness and clamp from the body and shock absorber.

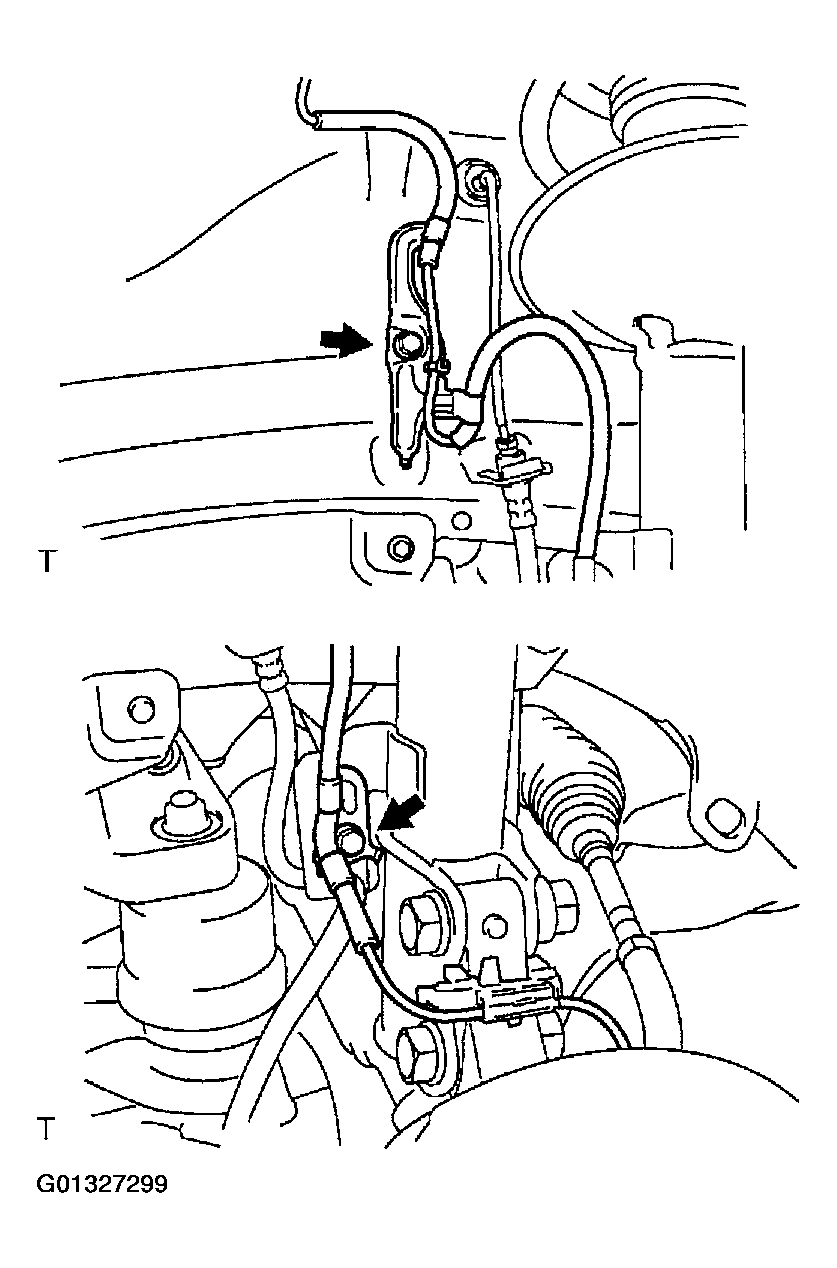

  Fig 2: Removing Clamp Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and speed sensor FR LH.
  NOTE: Do not stick and foreign matter on the sensor tip.
