Fuel System: Inspection
- FUEL INJECTOR ASSYΒ
- Inspect injector resistance
- Using an ohmmeter, measure the resistance between the terminals.
- Resistance: 13.4 - 14.2 Ξ© at 20Β°C (68Β°F)Β
If the resistance is not as specified, replace the injector.
- Using an ohmmeter, measure the resistance between the terminals.
- Inspect injector inspectionCAUTION: Keep injector clear of sparks during the test.

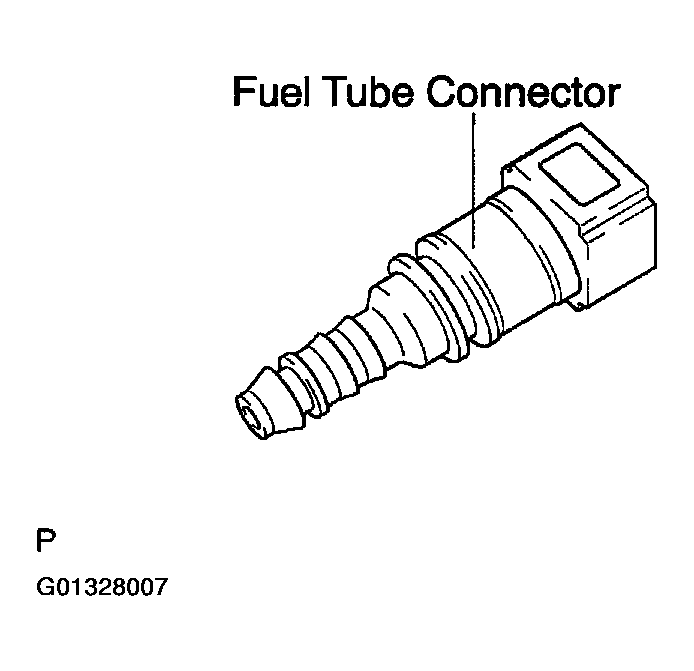

- Purchase the new No. 1 fuel pipe and take out the fuel tube connector from its pipe.
HINT:
Part No. 23801 - 20150
- Connect SST and fuel tube connector to the fuel pipe.
- SST 09268-41047 (95336-08070)
CAUTION: Perform connecting operations of the fuel tube connector (quick type) after observing the precautions.
- Purchase the new No. 1 fuel pipe and take out the fuel tube connector from its pipe.
- Inspect injector resistance
