Transfer Unit: Removal
- RAISE VEHICLE NOTE: Make sure that the vehicle is securely supported.

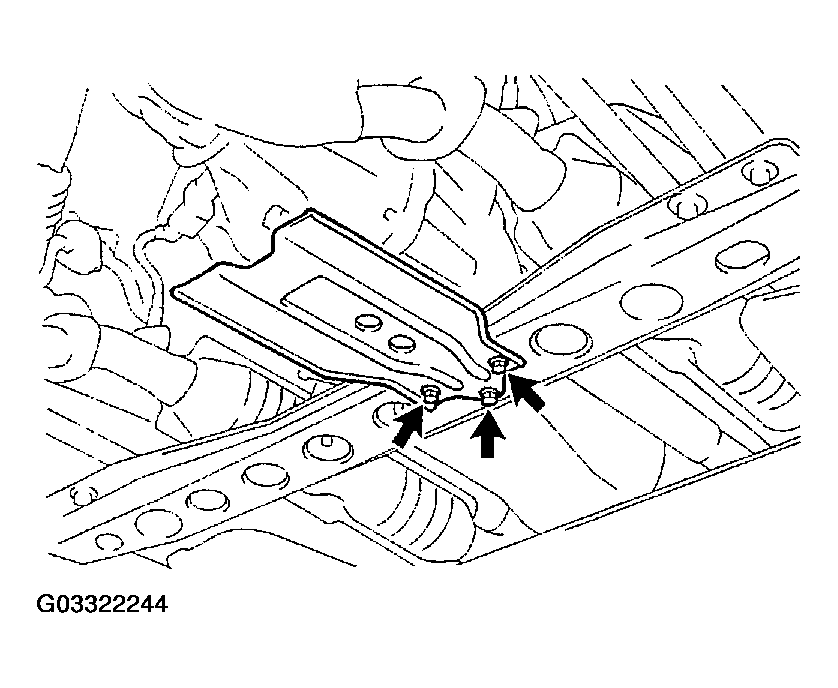

- REMOVE TRANSFER CASE PROTECTOR
Remove the 3 bolts and transfer case protector.
Torque: 28 N.m (290 kgf.cm, 21 ft.lbf)

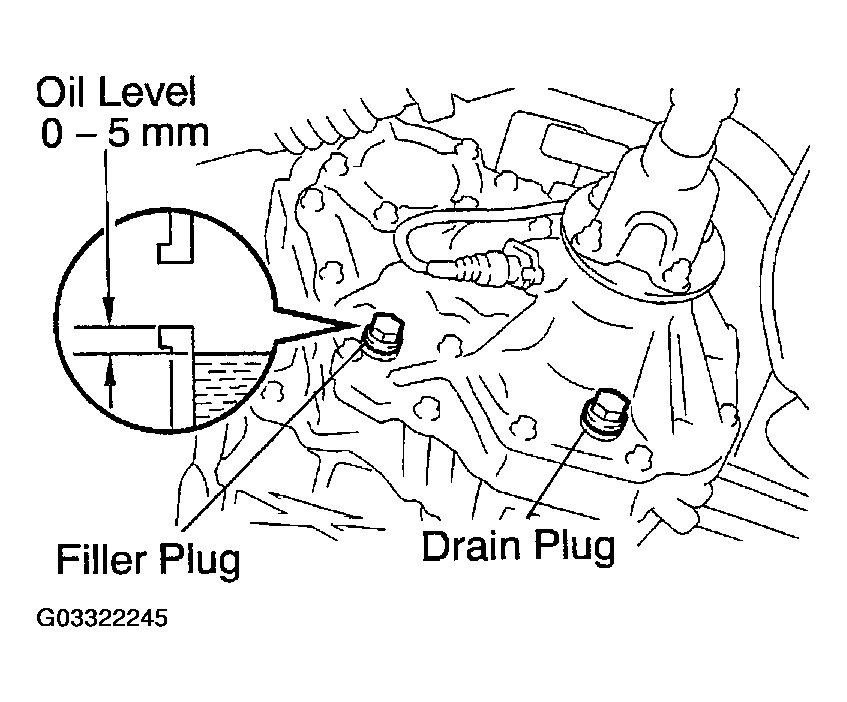

- DRAIN TRANSFER OIL
Oil grade: API GL-4 or GL-5
Viscosity: SAE 75 W-90
Capacity: 1.3 liters (1.4 US qts, 1.1 lmp. qts)
Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)
- REMOVE FRONT AND REAR PROPELLER SHAFTS (See REMOVAL )

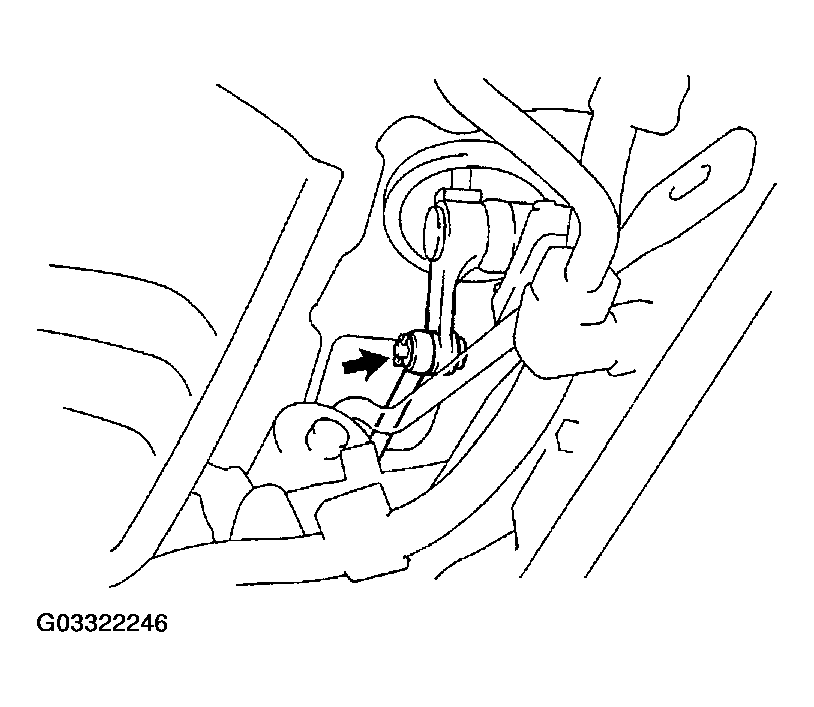

- DISCONNECT TRANSFER SHIFT LEVER ROD ASSEMBLY
Remove the clip, plate washer, wave washer and bushing, and disconnect the transfer shift lever rod assembly.
- DISCONNECT GROUND CABLE
Remove the bolt and disconnect the ground cable from the transfer.

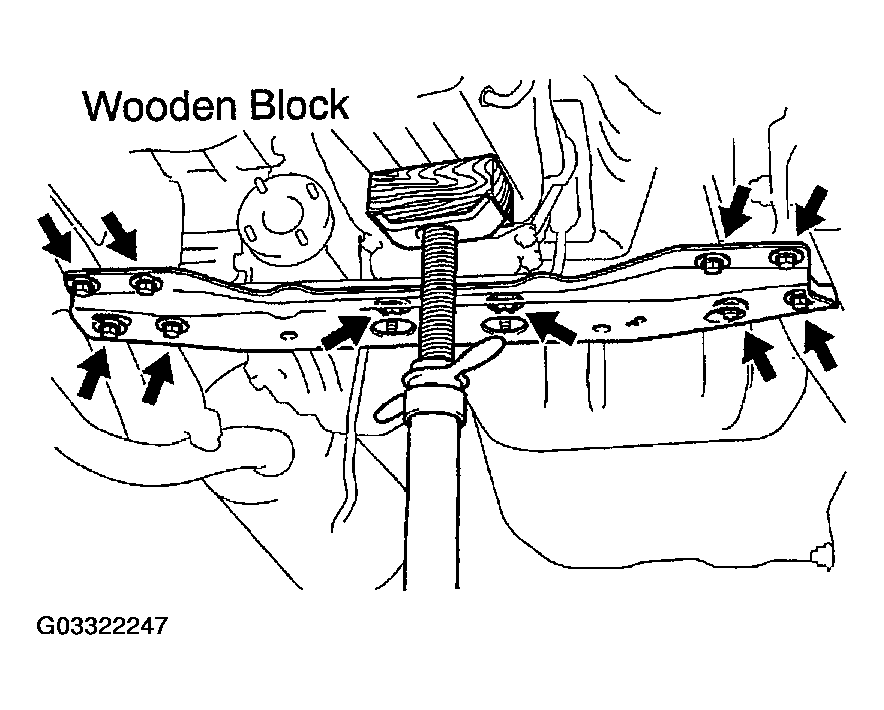

- REMOVE CROSSMEMBER
- Support the transmission, as shown in Fig 4.
