Transfer Assembly: Disassembly
- REMOVE BREATHER HOSE
- REMOVE VEHICLE SPEED SENSOR DRIVEN GEAR
Remove the bolt and driven gear.

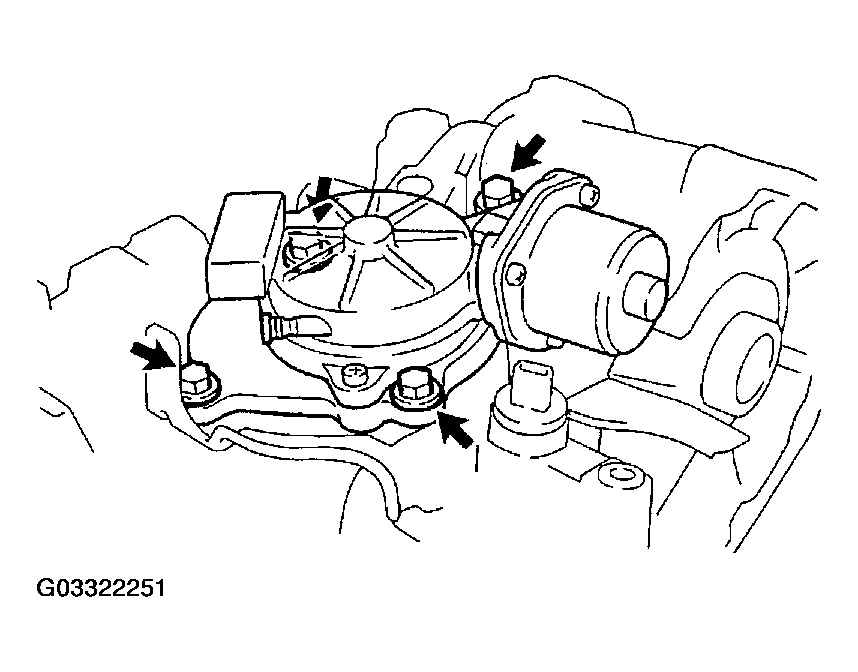

- REMOVE MOTOR ACTUATOR
Remove the 4 bolts and motor actuator.

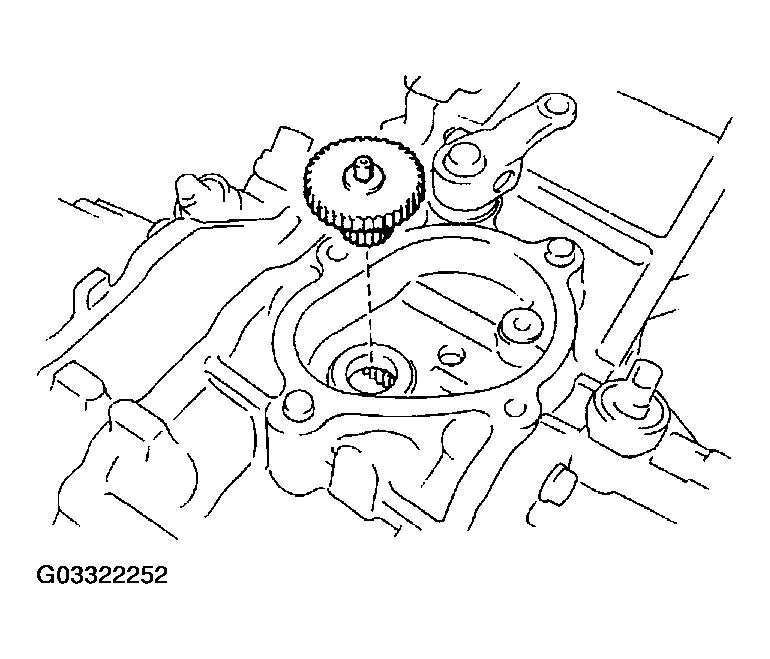

- REMOVE OUTPUT GEAR FROM FRONT CASE

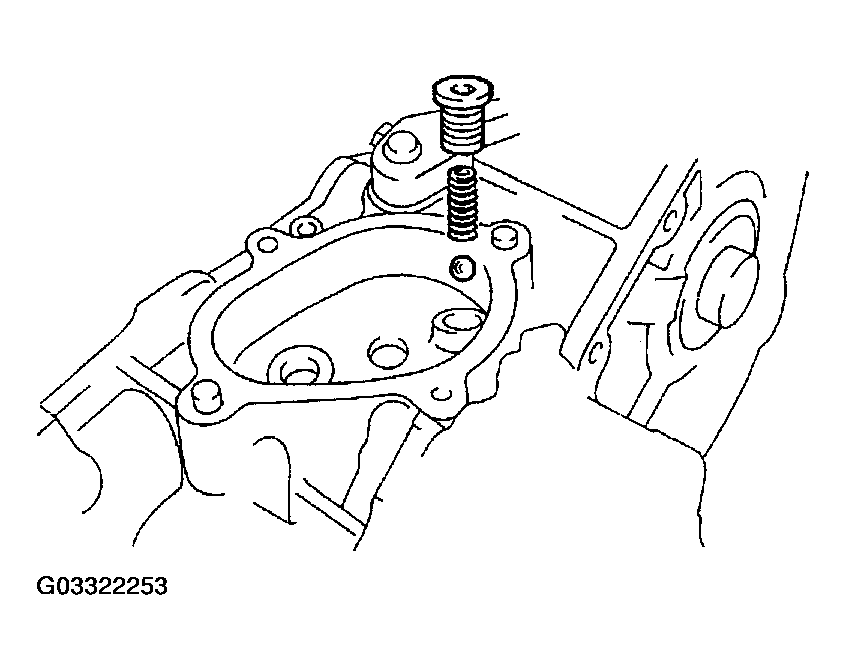

- REMOVE SCREW PLUG, SPRING AND BALL
- Using a torx socket wrench (T40), remove the screw plug.
- Using a magnetic finger, remove the spring and ball.
- REMOVE TRANSFER INDICATOR SWITCH
Remove the 3 transfer indicator switches and 3 gaskets.
- REMOVE FRONT EXTENSION HOUSING
Remove the 6 bolts and front extension housing.
NOTE: If necessary, tap the front extension housing lightly with a plastic hammer.
