Center Differential: Disassembly
- INSPECT HIGH SPEED OUTPUT GEAR RADIAL AND THRUST CLEARANCE

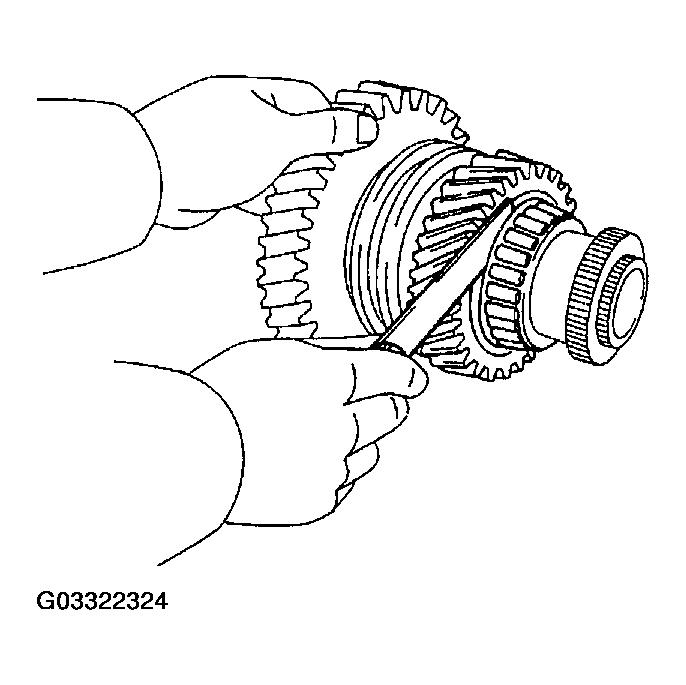

- Using a feeler gauge, measure the high speed output gear thrust clearance.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard clearance:
0.10 - 0.25 mm (0.0039 - 0.0098 in.)
Maximum clearance:
0.25 mm (0.0098 in.)

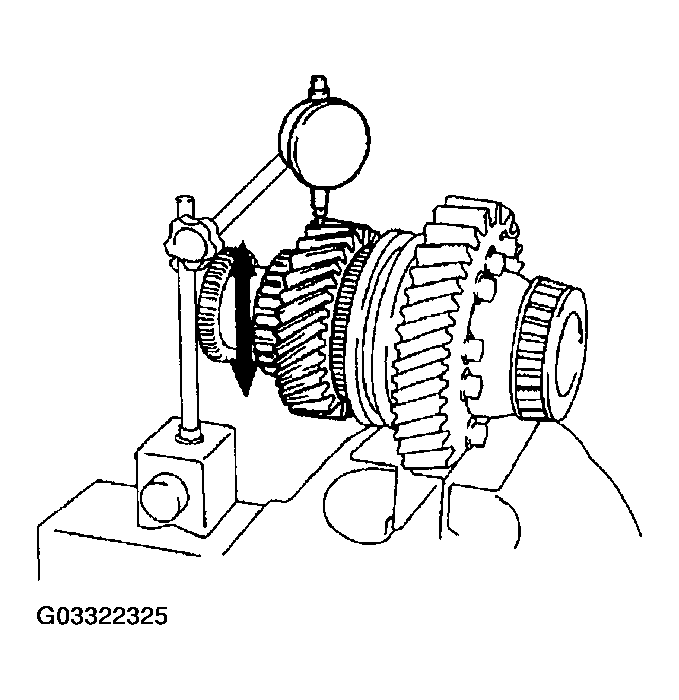

- Using a dial indicator, measure the high speed output gear radial clearance.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard clearance:
0.035 - 0.091 mm (0.00138 - 0.00358 in.)
Maximum clearance:
0.091 mm (0.00358 in.)
- Using a feeler gauge, measure the high speed output gear thrust clearance.
- REMOVE FRONT DRIVE GEAR PIECE
- Using a snap ring expander, remove the snap ring.
- Using SST and a press, remove the front drive gear piece.
SST 09950-00020, 09950-60010(09951-00320)
CAUTION: Be careful not to drop the center differential assembly.

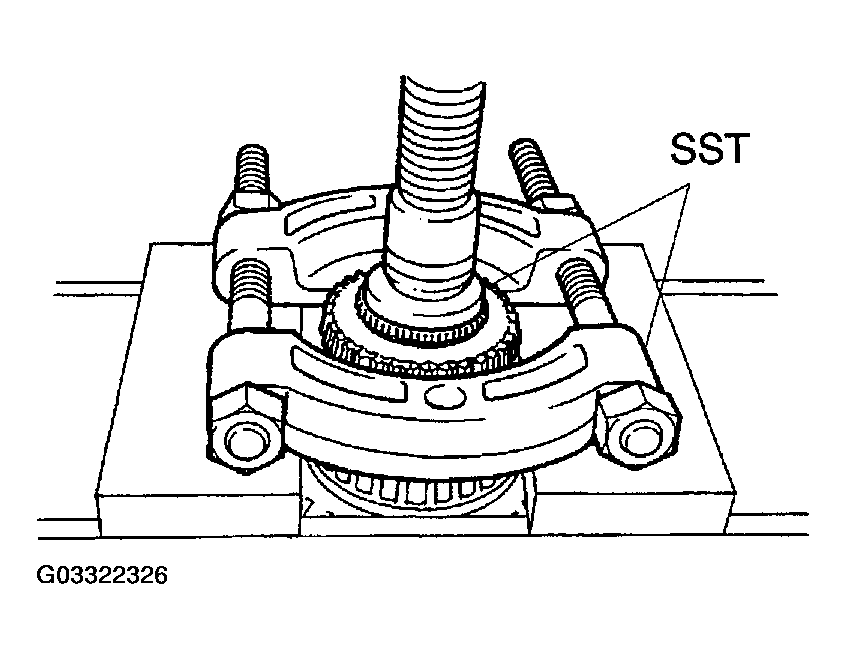

- REMOVE FRONT TAPER ROLLER BEARING

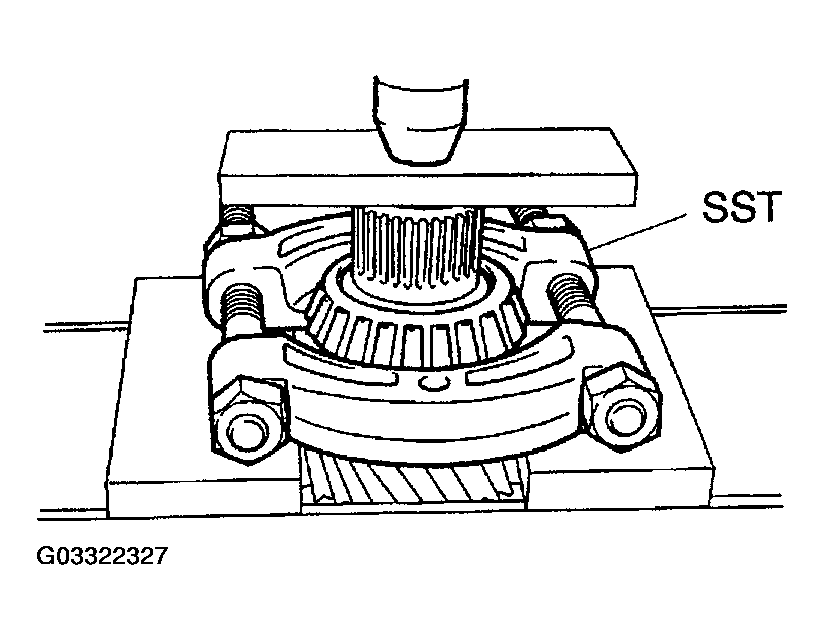

Using SST and a press, remove the front taper roller bearing.
SST 09950-00020

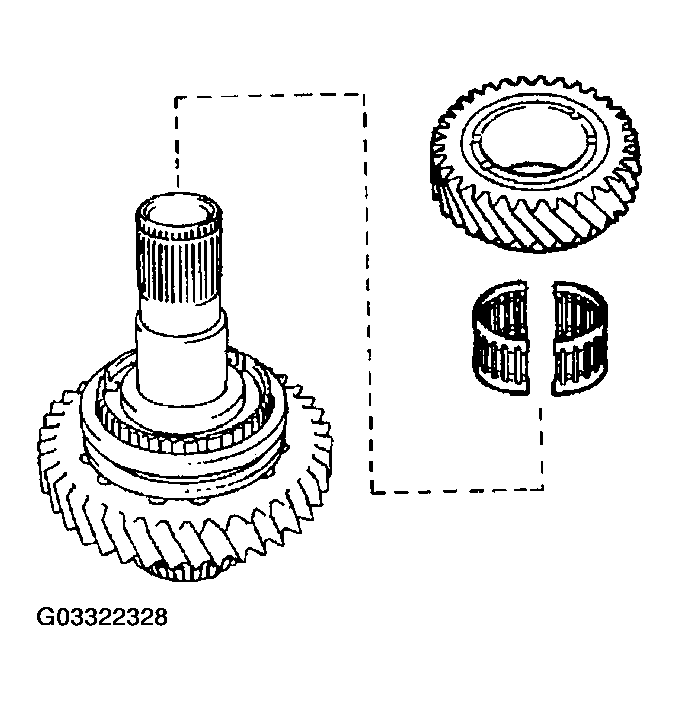

NOTE: Set the claw of SST to the bearing inner race securely. - REMOVE HIGH SPEED OUTPUT GEAR
- REMOVE 2 NEEDLE ROLLER BEARINGS

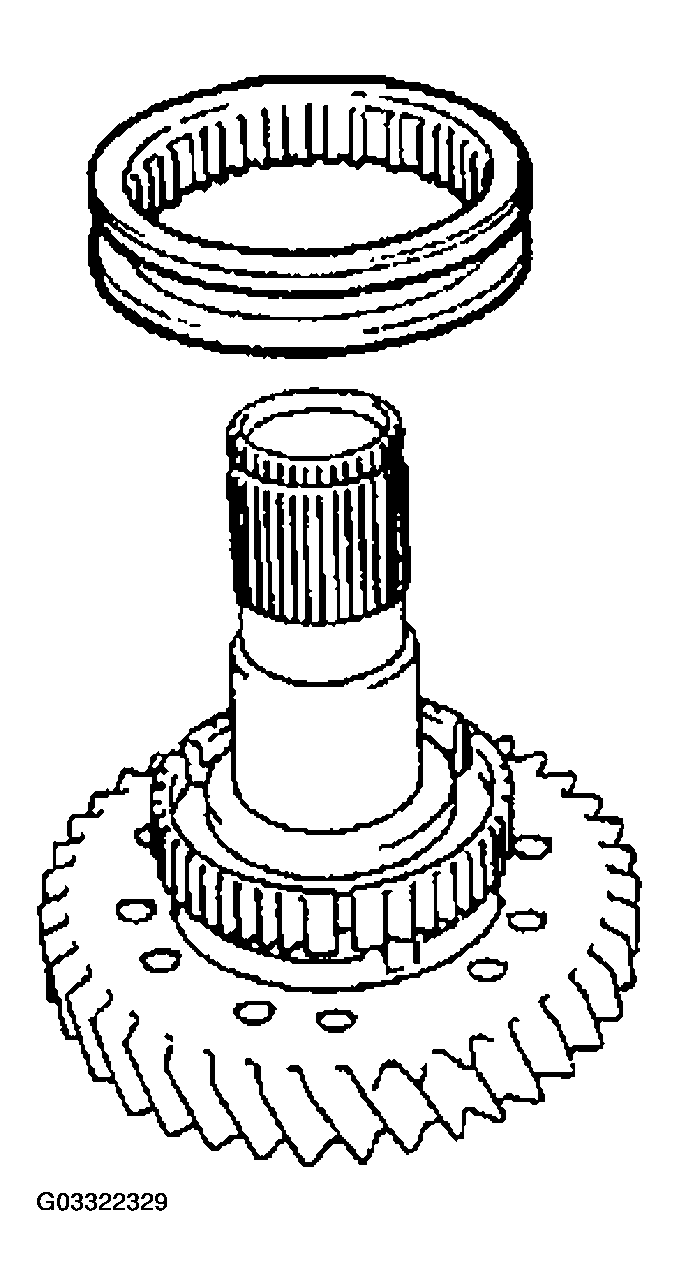

- REMOVE HIGH AND LOW CLUTCH SLEEVE
- REMOVE HIGH SPEED OUTPUT GEAR BUSHING AND CLUTCH HUB

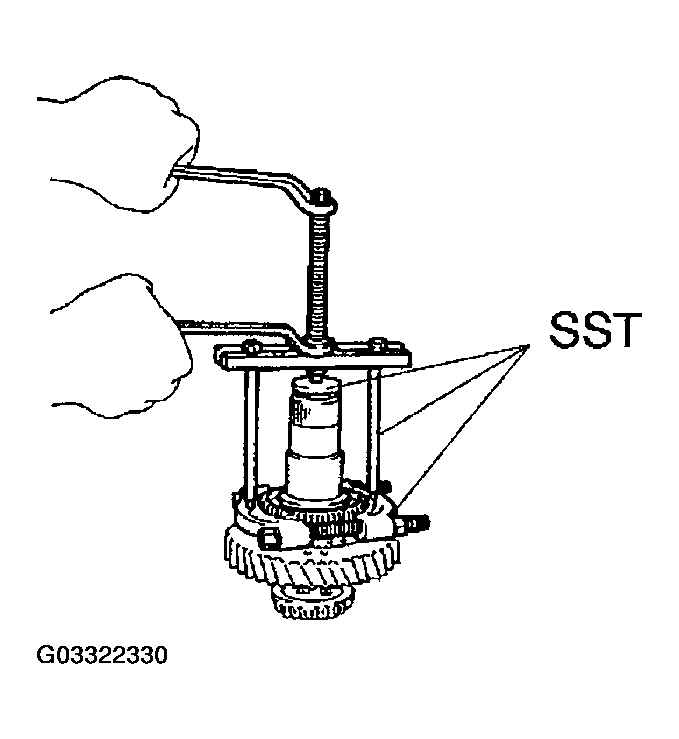

- Using SST, remove the high speed output gear bushing and clutch hub.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SST 09950-00020, 09950-00030, 09950-60010 (09951-00320)
- Using a magnetic finger, remove the straight pin from the differential front case.
- Using SST, remove the high speed output gear bushing and clutch hub.

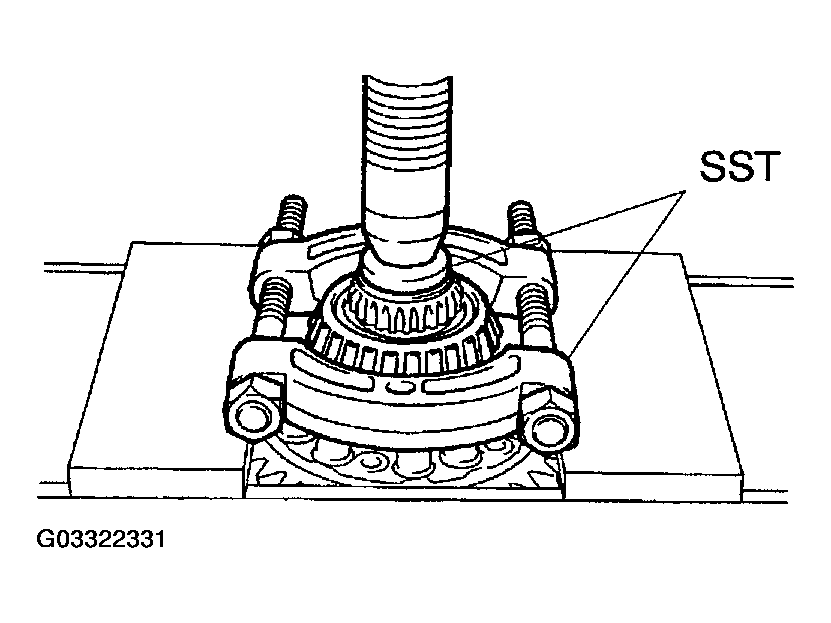

- REMOVE REAR TAPER ROLLER BEARING
Using SST and a press, remove the rear taper roller bearing.
SST 09950-00020, 09950-60010 (09951-00320)
NOTE: Set the claw of SST to the bearing inner race securely. - REMOVE DIFFERENTIAL REAR CASE

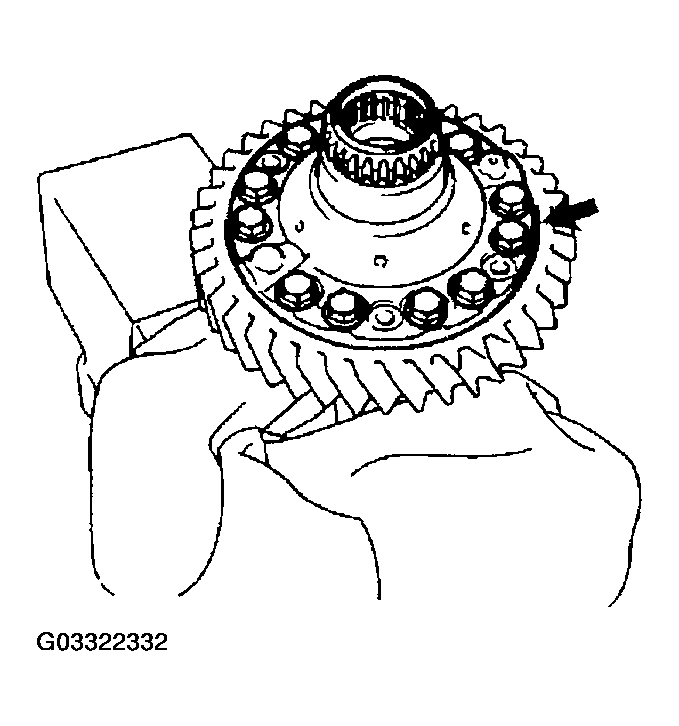

Remove the 12 bolts and differential rear case.

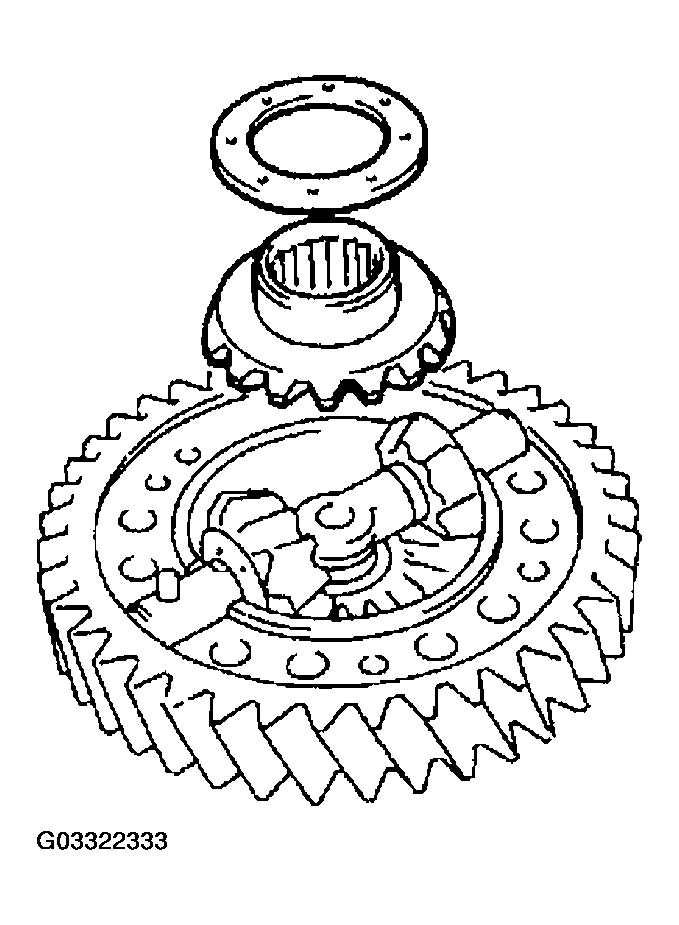

- REMOVE THRUST WASHER AND REAR SIDE GEAR

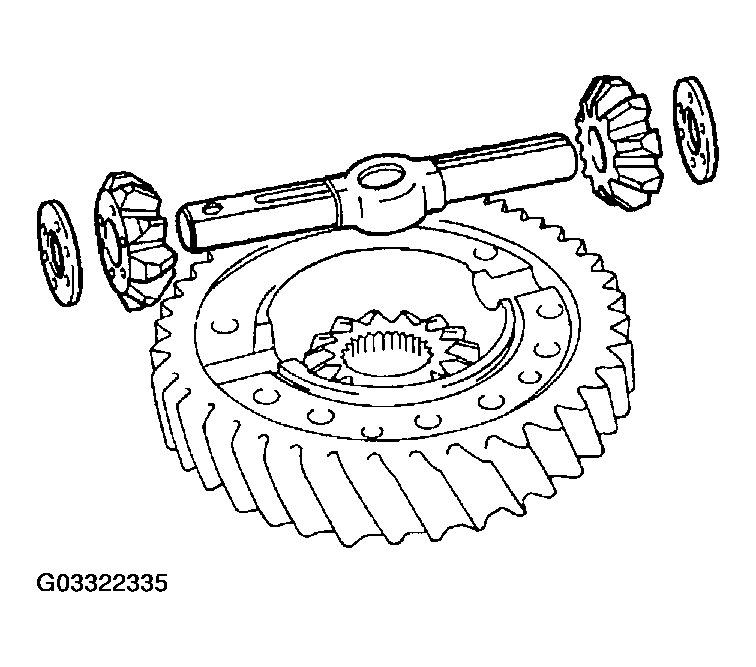

- REMOVE PINION SHAFT, 2 PINION GEARS AND 2 THRUST WASHERS

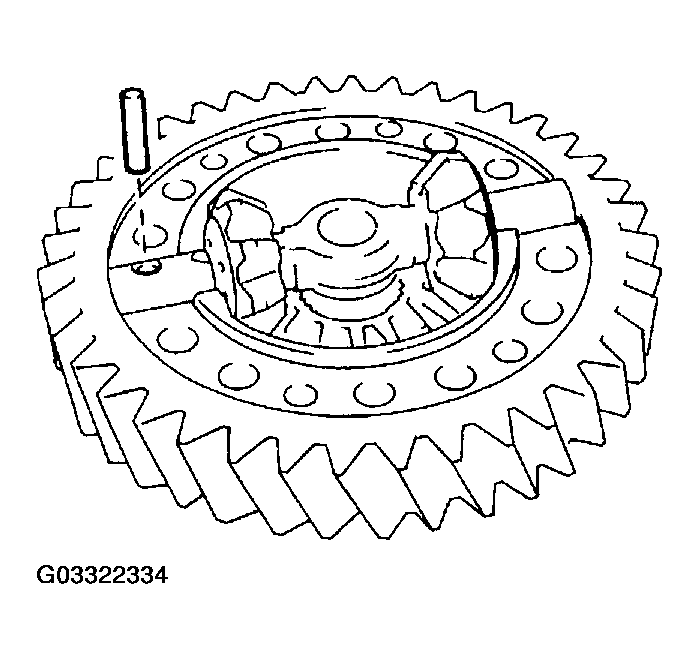

- Remove the straight pin from the pinion shaft.
- Remove the pinion shaft, 2 pinion gears and thrust washers.

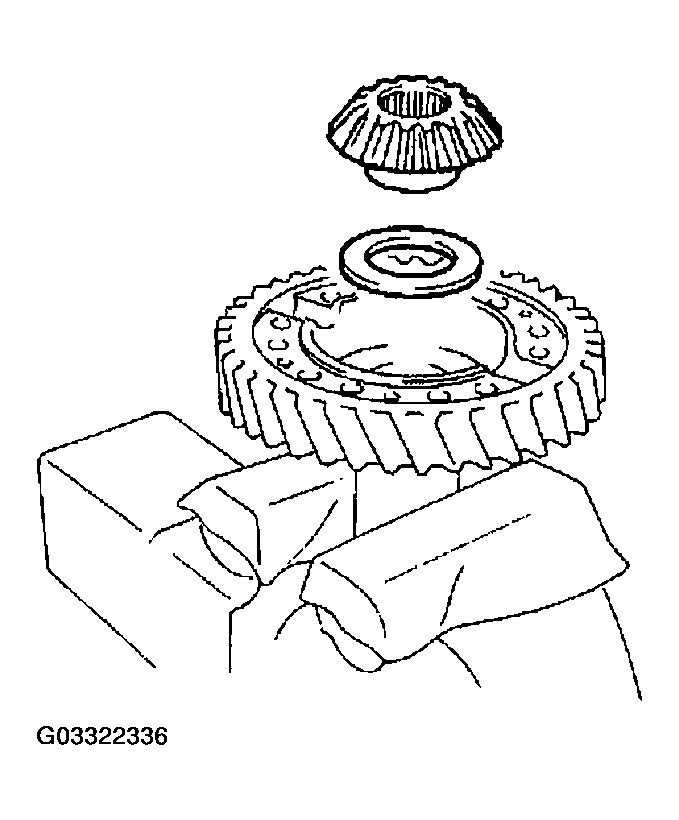

- Remove the front side gear and thrust washer.
- REMOVE LOW GEAR

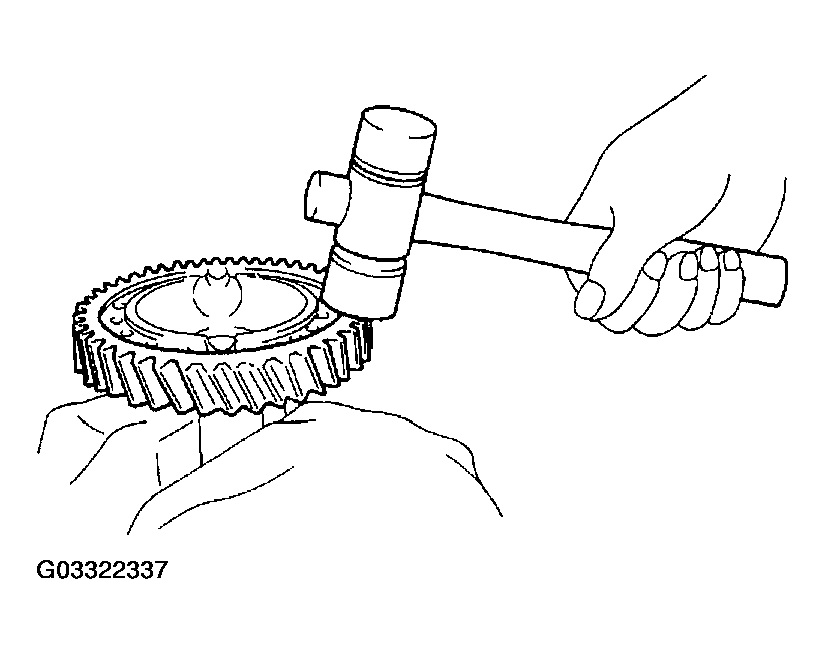

Using a plastic hammer, tap and remove the low gear.
