Charging Systems: Generator: Replacement
- REPLACE FRONT BEARING

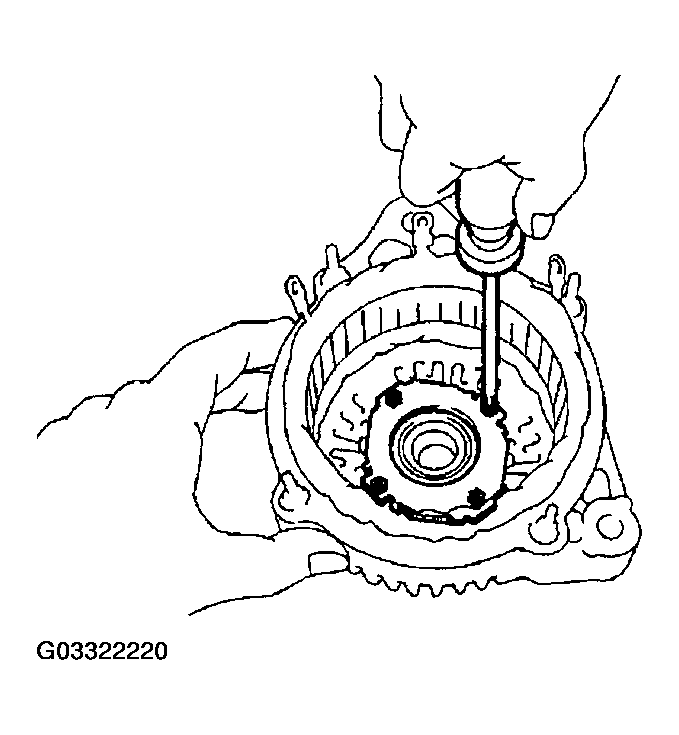

- Remove the 4 screws and bearing retainer.

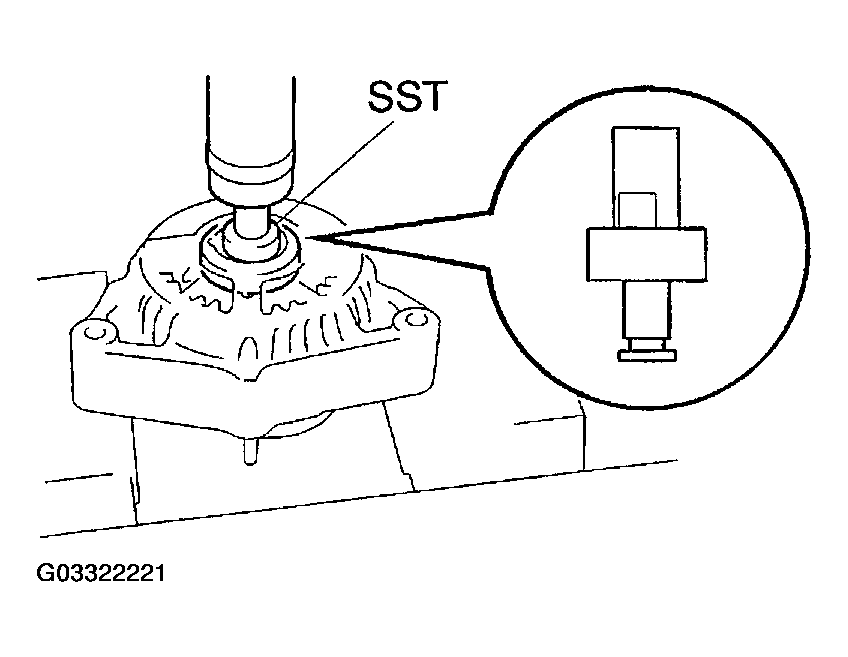

- Using SST and a press, press out the bearing.
SST 09950-60010 (09951-00260, 09952-06010)

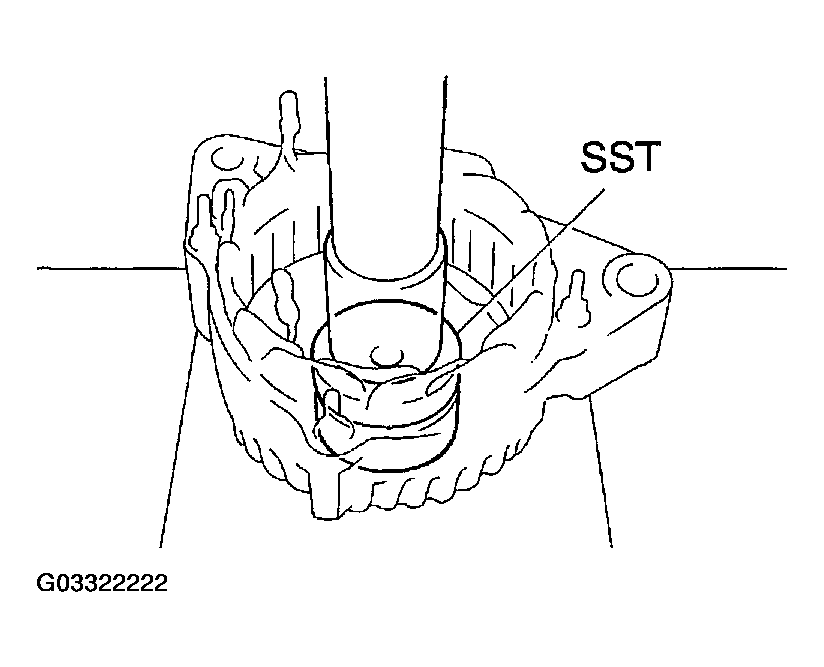

- Using SST and a press, press in a new bearing.
SST 09950-60010 (09951-00500)
- Install the bearing retainer with the 4 screws.
Torque: 3.0 N.m (31 kgf.cm, 27 in.lbf)
- REPLACE REAR BEARING

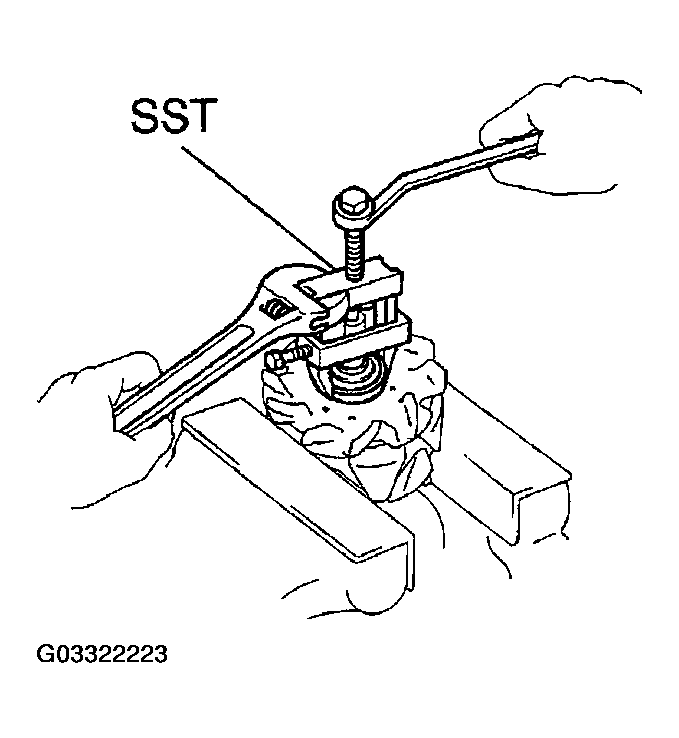

- Using SST, remove the bearing cover (outside) and bearing.
SST 09820-00021
CAUTION: Be careful not to damage the fan. - Remove the bearing cover (inside).

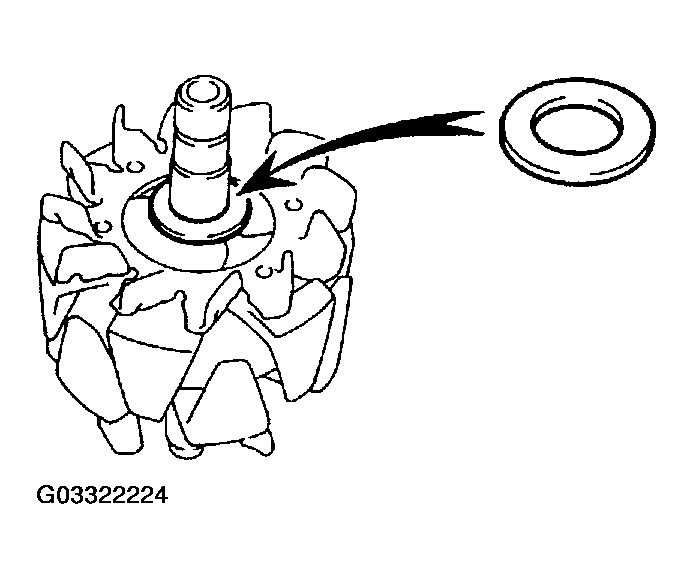

- Place the bearing cover (inside) on the rotor.

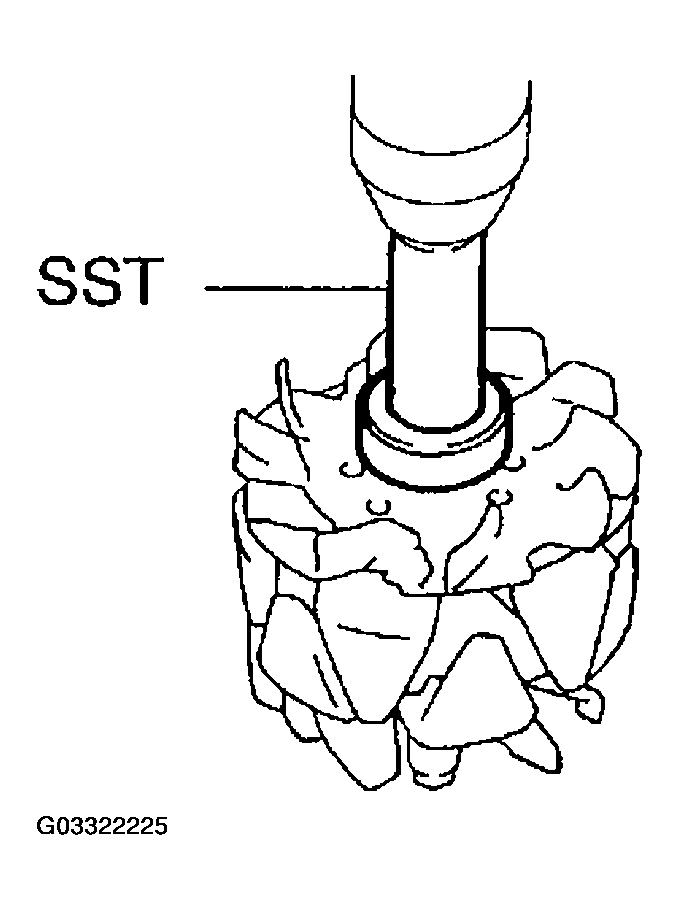

- Using SST and a press, press in a new bearing.
SST 09820-00031

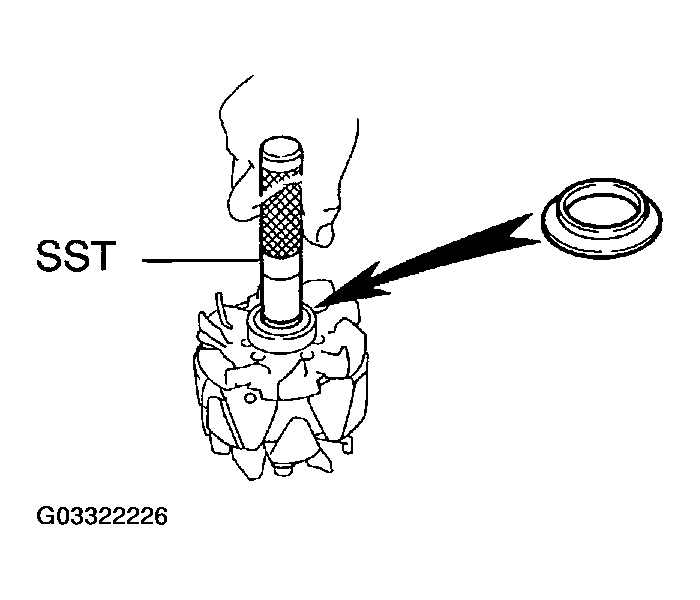

- Using SST, push in the bearing cover (outside).
SST 09285-76010
- Using SST, remove the bearing cover (outside) and bearing.
