Charging Systems: Generator: Installation

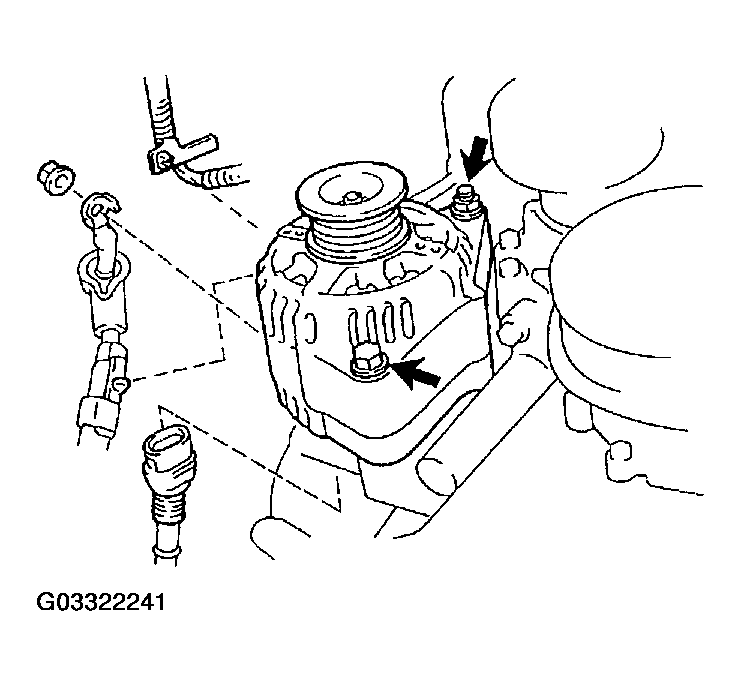

- INSTALL GENERATOR
- Install the generator with the bolt and nut.
Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
- Connect the generator connector.
- Connect the generator wire with the nut and rubber cap.
- Install the generator wire clamp to the cord clip on the generator.
- Install the generator with the bolt and nut.
- INSTALL PS VANE PUMP PULLEY (See INSTALLATION )
- INSTALL RADIATOR ASSEMBLY (See INSTALLATION )

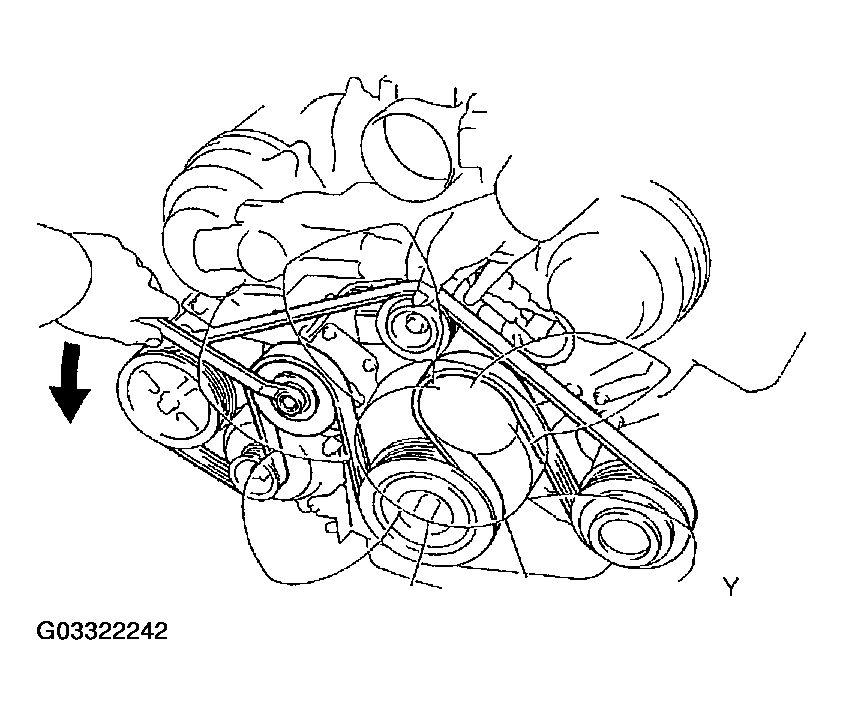

- INSTALL GENERATOR DRIVE BELT
Install the belt by turning the belt tensioner counterclockwise.
