Power Mirror Control System: Inspection

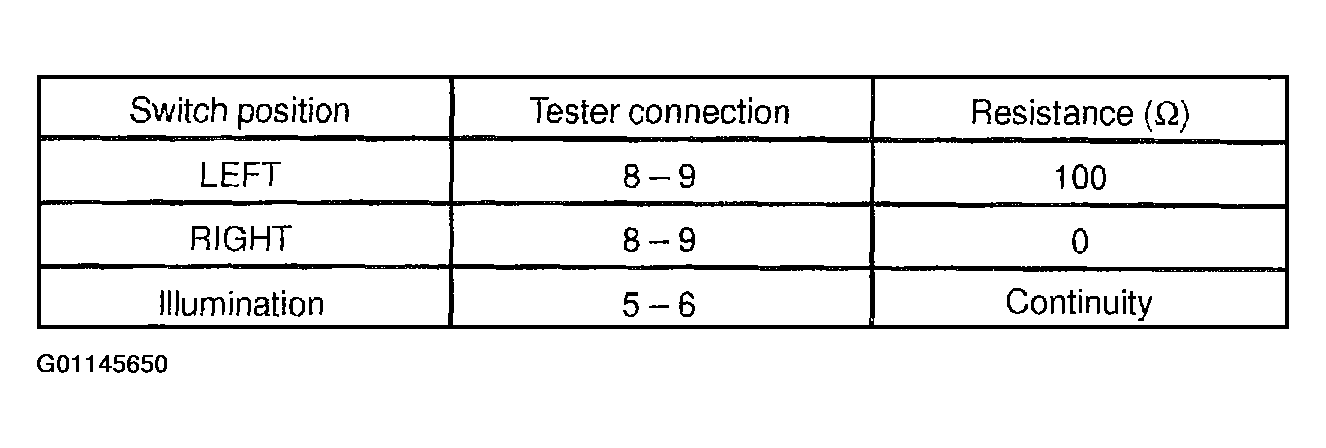

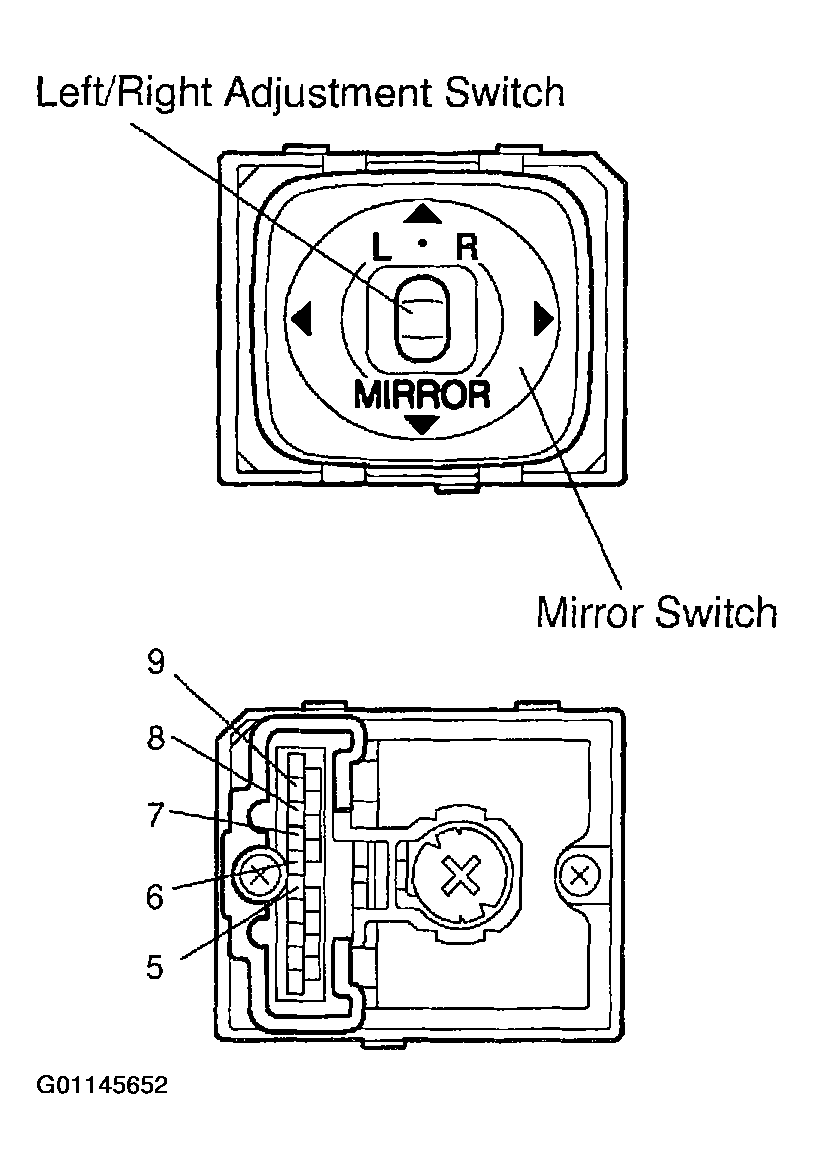

- INSPECT MIRROR SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

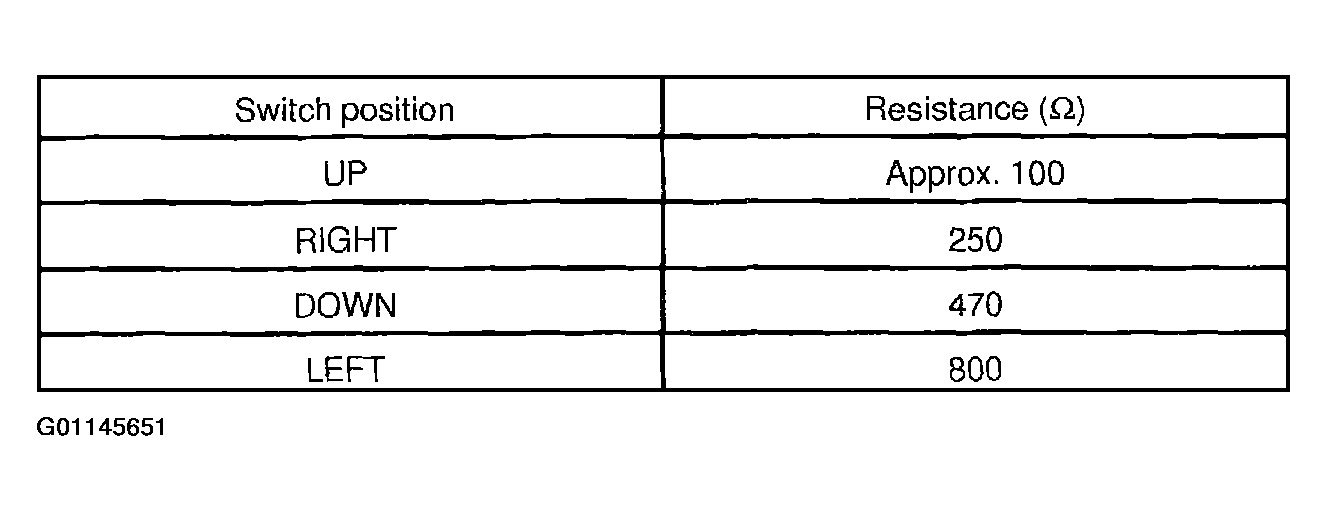

- INSPECT MIRROR SWITCH RESISTANCE
Measure resistance between terminals 7 and 9 at each switch position, as shown in the chart.
If resistance is not as specified, replace the switch.

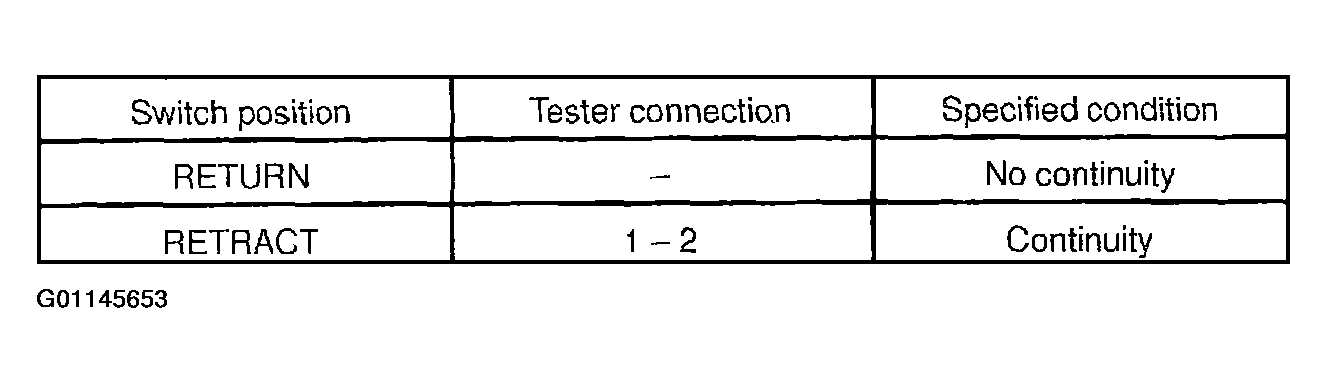

- INSPECT RETRACT SWITCH CONTINUITY
