2001 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

Headlight Beam Level Control System: Inspection

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT HEADLIGHT BEAM LEVEL CONTROL ACTUATOR RESISTANCE
1. Check that continuity exists between terminal 2 and 5.
2. Check that resistance exists between terminal, as shown in the chart.

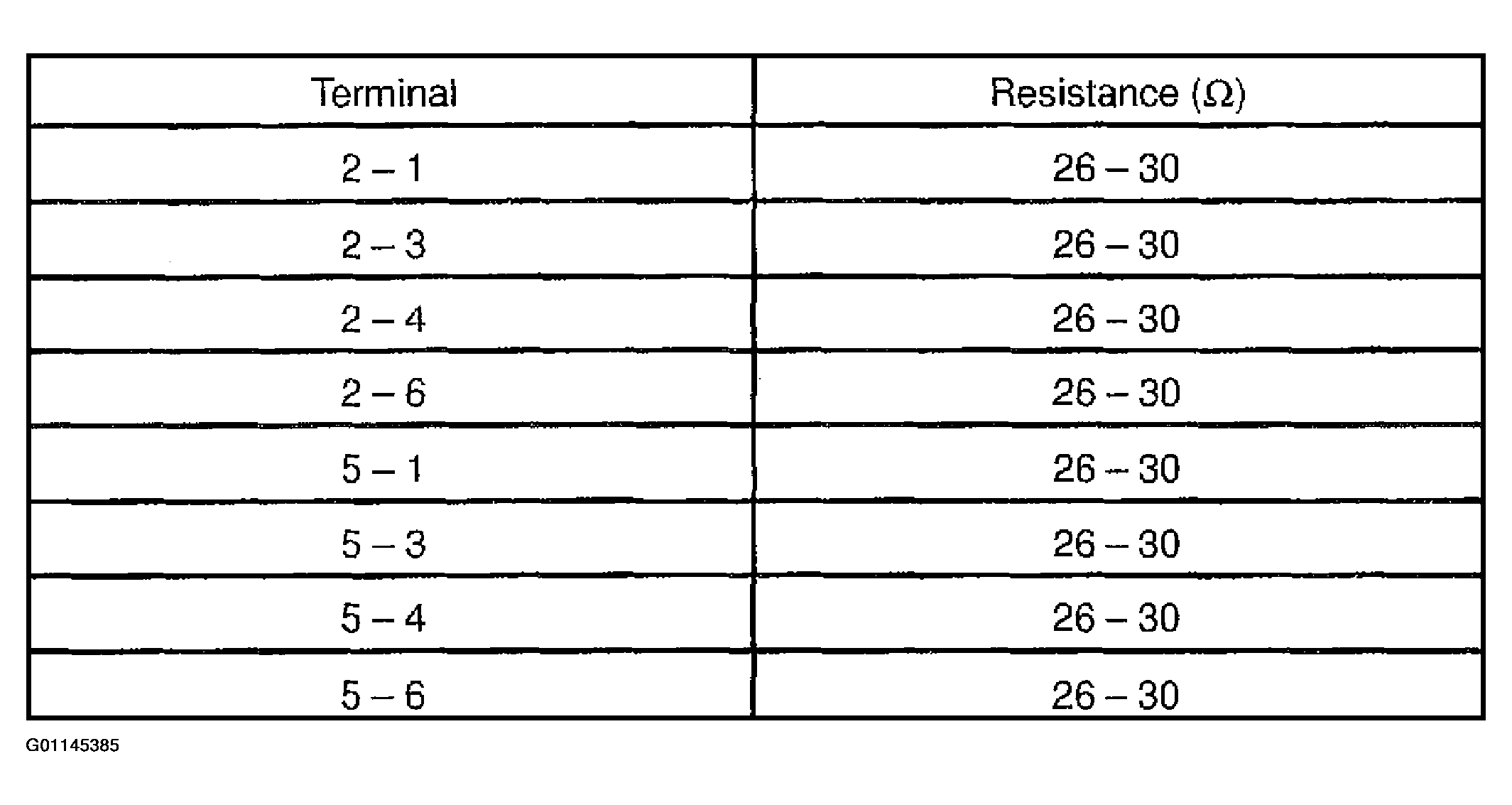

  Fig 1: Headlight Beam Level Control Actuator Resistance Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
