2001 Lexus LS 430FACTORY OEM SERVICE PROCEDURE
Air Control Valve: Inspection
WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
- Turn air conditioning switch off.
- Check idle-up.
- Start the engine and run it at idle.
- Fully turn the steering wheel.

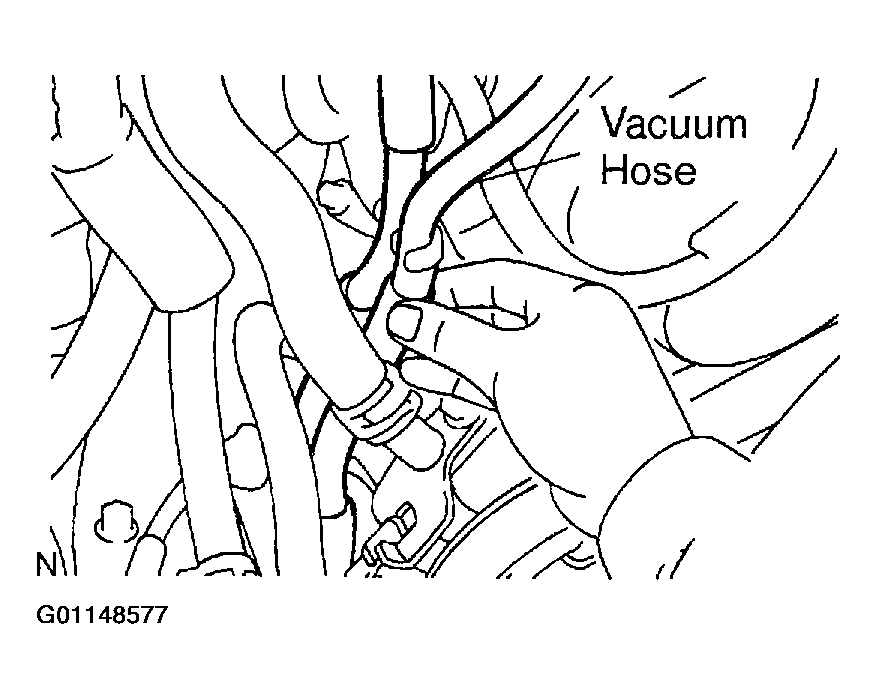

- Check that the engine rotations decrease when the vacuum hose of the air control valve is pinched.
- Check that the engine rotations increase when the hose is released.
