Master Switch

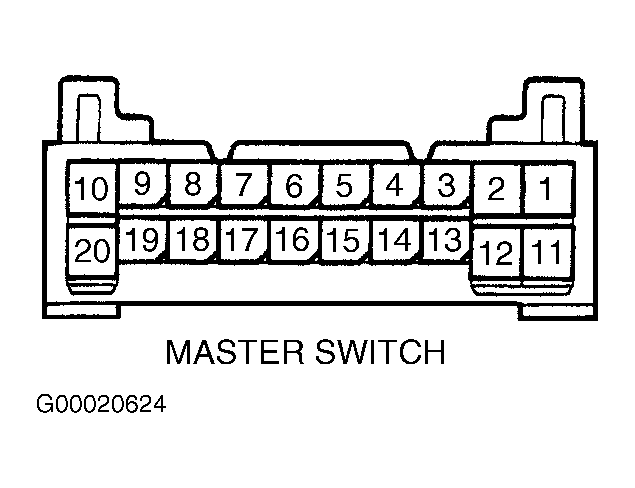

Remove master switch. Check for continuity between specified terminals of master switch. Ensure continuity is as specified in appropriate switch positions. See Fig 1. See MASTER SWITCH CONTINUITY TEST table. If continuity is not as specified, replace master switch.
| Position | Terminals No. | |||
|---|---|---|---|---|
| Driver's Window | ||||
| OFF (Neutral) | (1) | |||
| UP (Auto) | 6 & 20; 6 & 16 | |||
| UP (Manual) | 6 & 20 | |||
| DOWN (Auto) | 6 & 11; 6 & 16 | |||
| DOWN (Manual) | 6 & 11 | |||
| Front Passenger's Window | ||||
| OFF (Neutral) | (1) | |||
| UP (Auto) | 3 & 14; 3 & 14 | |||
| UP (Manual) | 3 & 14 | |||
| DOWN (Auto) | 3 & 13; 3 & 15 | |||
| DOWN (Manual) | 3 & 13 | |||
| Left Rear Passenger's Window | ||||
| OFF (Neutral) | (1) | |||
| UP (Auto) | 5 & 14; 5 & 15 | |||
| UP (Manual) | 5 & 14 | |||
| DOWN (Auto) | 5 & 13; 5 & 15 | |||
| DOWN (Manual) | 5 & 13 | |||
| Right Rear Passenger's Window | ||||
| OFF (Neutral) | (1) | |||
| UP (Auto) | 4 & 14; 4 & 15 | |||
| UP (Manual) | 4 & 14 | |||
| DOWN (Auto) | 4 & 13; 4 & 15 | |||
| DOWN (Manual) | 4 & 13 | |||
|
||||
