Hazard Switch

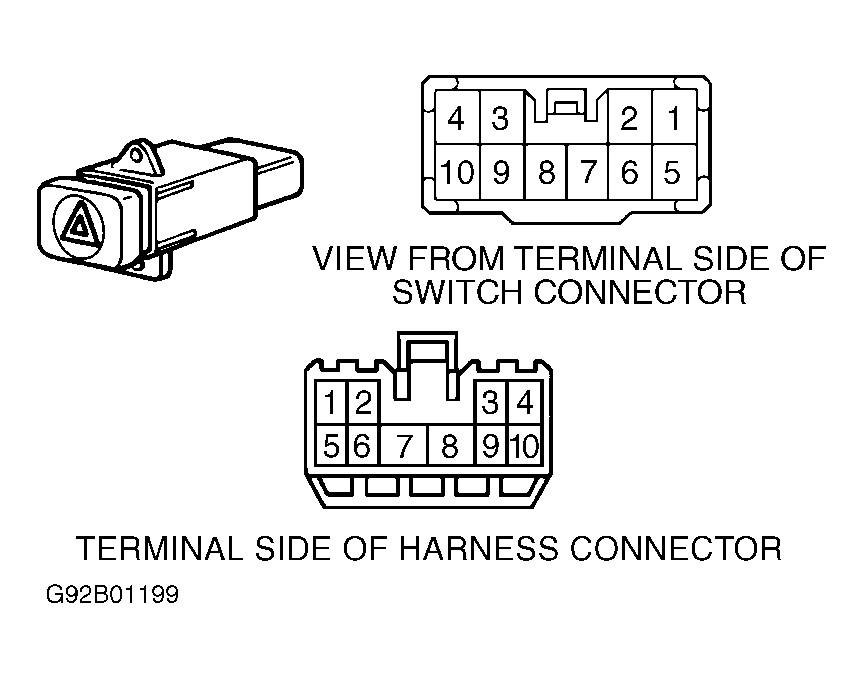

Remove and test hazard switch. See HAZARD SWITCH CONTINUITY TEST table. See Fig 1. If continuity is not as specified, replace hazard switch and retest system operation.
| Terminals No. (Wire Color) | Specification | ||
|---|---|---|---|
| With Navigation System | |||
| 1 (Orange Wire) & 4 (White/Black Wire) | |||
| Switch On | Continuity | ||
| Switch Off | No Continuity | ||
| Without Navigation System | |||
| 3 (Orange Wire) & 2 (White/Black Wire) | |||
| Switch On | Continuity | ||
| Switch Off | No Continuity | ||
