Front Speed Sensor: Removal
- REMOVE FRONT WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

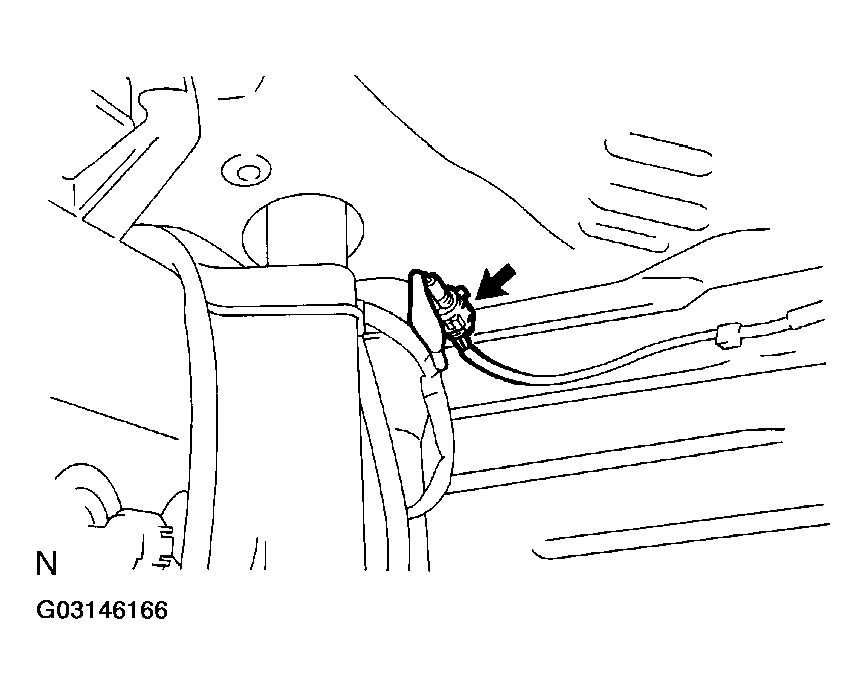

- DISCONNECT SPEED SENSOR CONNECTOR
- Remove the engine under cover and fender liner.
- Disconnect the speed sensor connector.
- REMOVE SPEED SENSOR
- LH side:
Disconnect the harness clamp.
- Remove the resin clip and 2 clamp bolts holding the sensor harness to the body.
Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

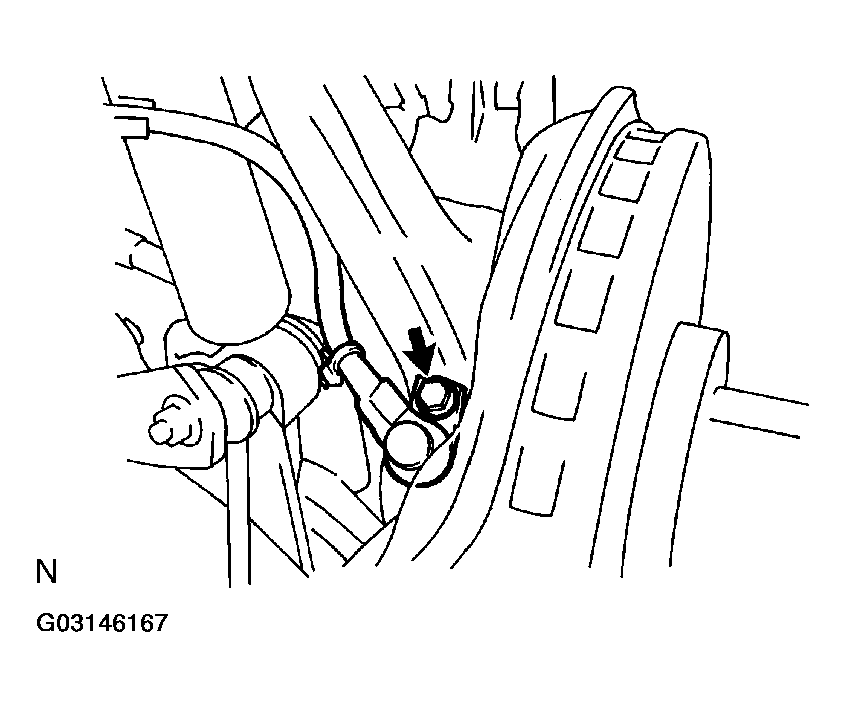

- Remove the bolt and speed sensor from the steering knuckle.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
- LH side:
