Anti-Theft Indicator

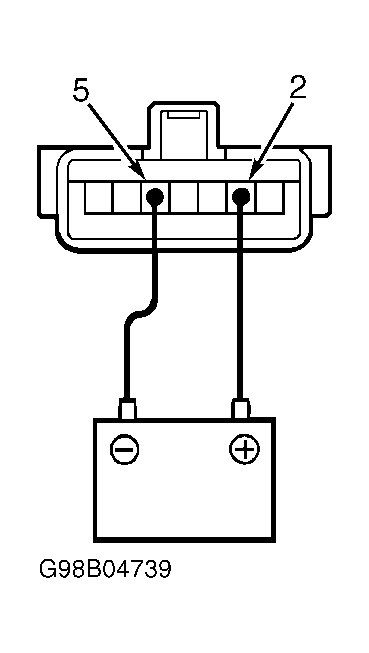

Disconnect indicator light 7-pin connector. Connect battery positive lead to terminal No. 2 (Violet wire) and negative battery lead to terminal No. 5 (White/Black wire). See Fig 1. See WIRING DIAGRAMS . If indicator light does not come on, replace light and retest system operation. If indicator light comes on, repair or replace wire harness and connectors between indicator light, body ECU No. 1 and combination meter (instrument cluster).
