2001 Lexus GS 300FACTORY OEM SERVICE PROCEDURE

Charging Systems: Generator: Replacement

REPLACE FRONT BEARING
1. Remove the 4 screws, bearing retainer and bearing.

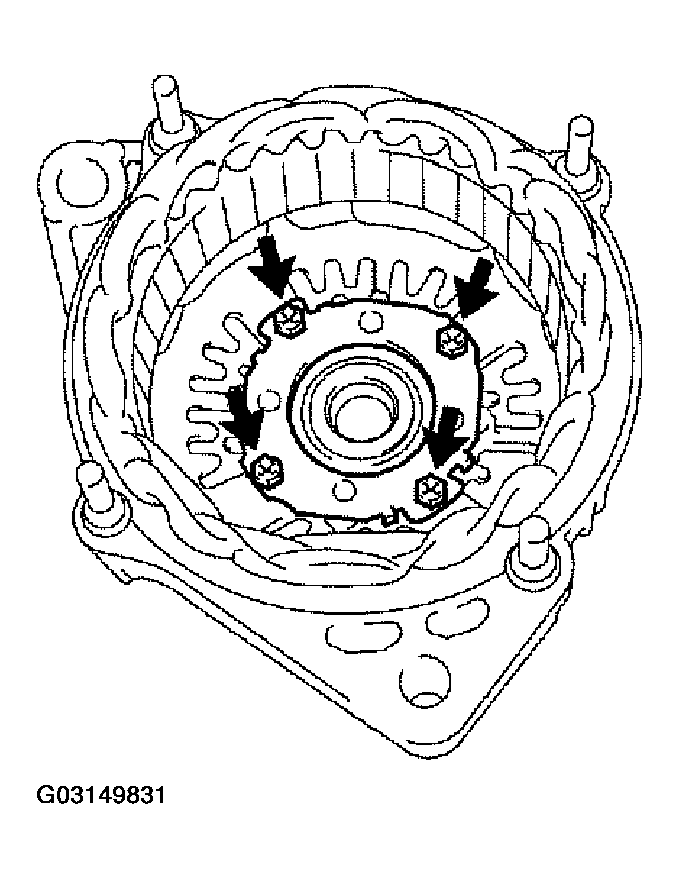

  Fig 1: Removing Front Bearing Retainer & Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a socket wrench and press, press out the bearing.

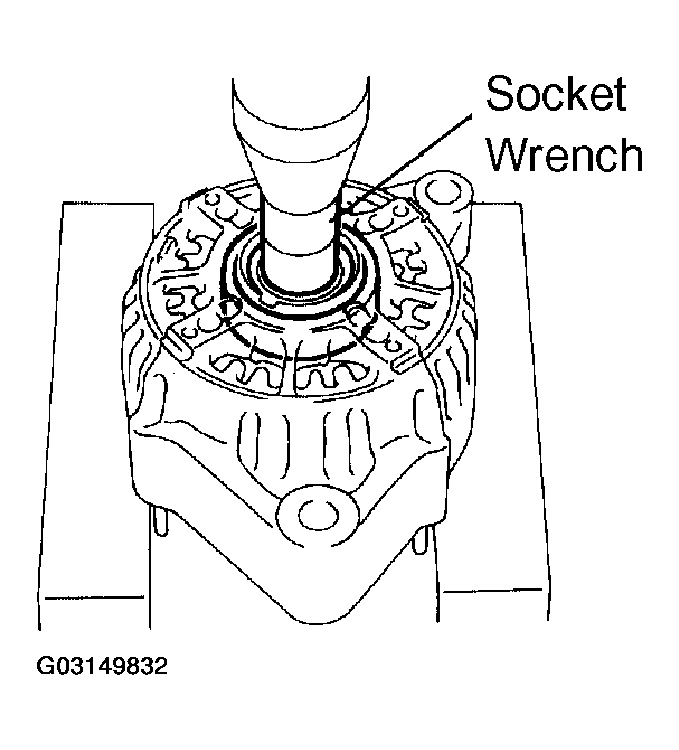

  Fig 2: Pressing Out Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST (SST 09950-60010/09951-00500) and a press, press in a new bearing.
4. Install the bearing retainer with the 4 screws.
  1. Torque: 3.0 N.m (31 kgf.cm 27 in.lbf)

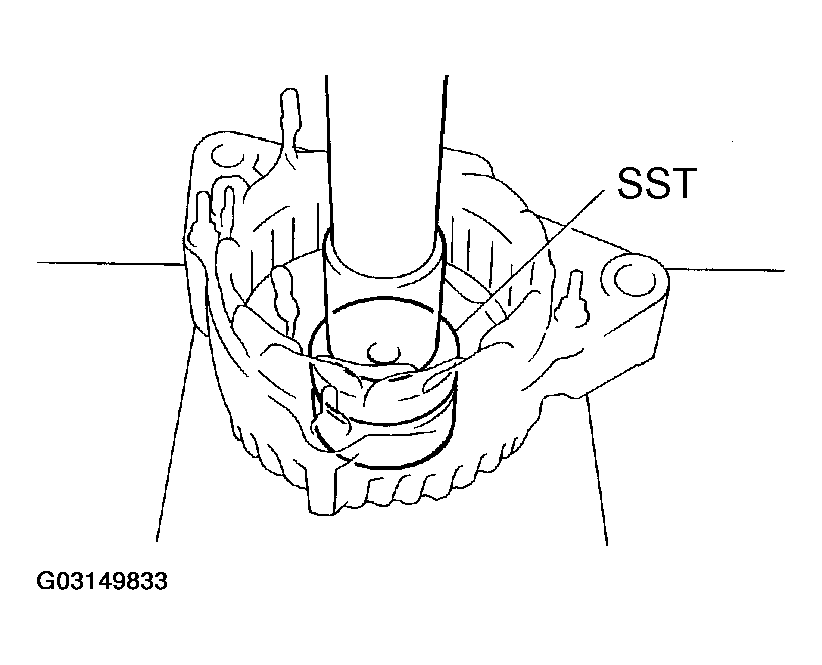

  Fig 3: Installing NEW Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE REAR BEARING.
1. Using SST (SST 09820-00021), remove the bearing cover (outside) and bearing.
  NOTE: Be careful not to damage the fan.
