2001 Lexus ES 300FACTORY OEM SERVICE PROCEDURE
Front Speed Sensor: Removal
- Disconnect speed sensor connector.
- Remove the fender liner.

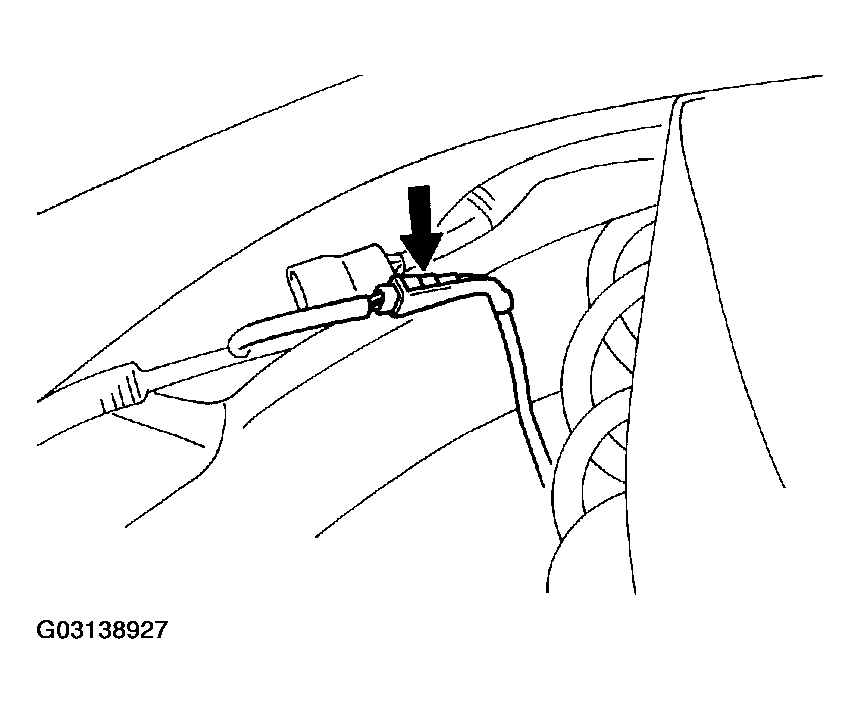

- Disconnect the speed sensor connector.
- Remove speed sensor.
- Remove the bolt, flexible hose and speed sensor harness clamp from the shock absorber.
- Torque: 29 N.m (300 kgf.cm, 21 ft.lbf)
- Remove the resin clip and clamp bolt holding the sensor harness to the body.
- Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

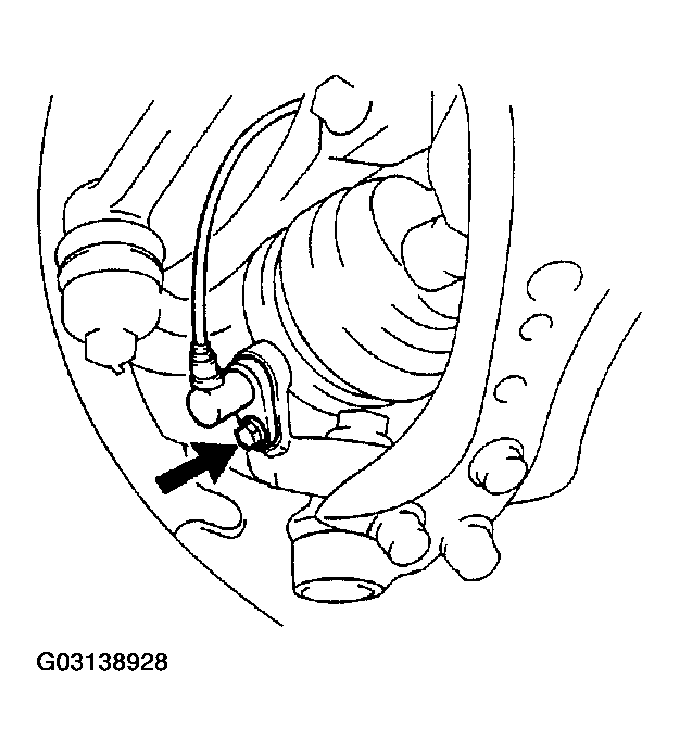

- Remove the bolt and speed sensor from the steering knuckle.
- Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
- Remove the bolt, flexible hose and speed sensor harness clamp from the shock absorber.
