2001 Lexus ES 300FACTORY OEM SERVICE PROCEDURE
Power Window Motor Limit Switch

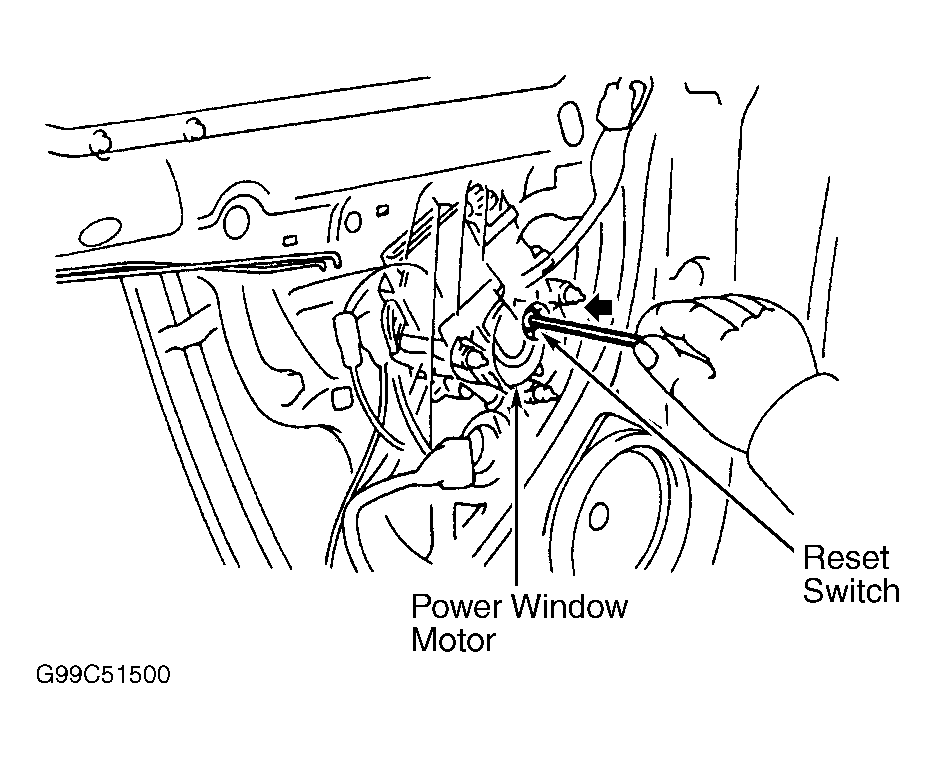

- Remove door panel. Reconnect window switch. Turn ignition on. Using window switch manual UP mode, close window fully. Using a wire .079" (2 mm) in diameter with a flat end, press reset switch on power window motor. See Fig 1.
- Using window switch manual DOWN mode, open window fully. Remove wire from reset switch. Using window switch manual UP mode, close window fully. Verify proper window operation using window switch AUTO function.
