Sun Roof Control Relay Circuits

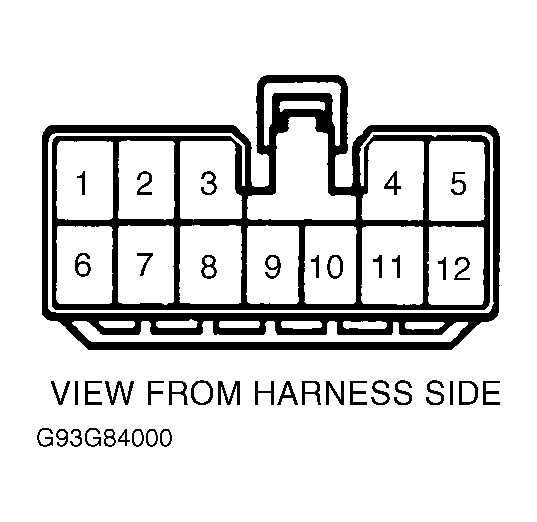

Remove sun roof control relay. Check for continuity or voltage between ground and specified terminals of relay connector. See SUN ROOF CONTROL RELAY CIRCUITS table. See Fig 1. If continuity or voltage are not as specified, repair circuit or components. If continuity and voltage are as specified, replace relay.
| Terminal No. | Test Condition | Specification | ||||
|---|---|---|---|---|---|---|
| 1 | Slide Switch: Off Or Close | No Continuity | ||||
| 1 | Slide Switch: Open | Continuity | ||||
| 2 | Slide Switch: Off Or Open | No Continuity | ||||
| 2 | Slide Switch: Close | Continuity | ||||
| 3 | Tilt Switch: Off Or Down | No Continuity | ||||
| 3 | Tilt Switch: Up | Continuity | ||||
| 4 (1) | Constant | Continuity | ||||
| 5 | Constant | Continuity | ||||
| 7 | Tilt Switch: Off Or Up | No Continuity | ||||
| 7 | Tilt Switch: Down | Continuity | ||||
| 8 | Sun Roof Tilted Up | No Continuity | ||||
| 8 | Sun Roof Not Tilted Up | Continuity | ||||
| 9 | Sun Roof Closed | No Continuity | ||||
| 9 | Sun Roof Open | Continuity | ||||
| 11 | Constant | Continuity | ||||
| 6 | Ignition Switch In LOCK Or ACC Position | (2) Zero Volts | ||||
| 6 | Ignition Switch in ON Position | Battery Voltage | ||||
| 12 | Constant | Battery Voltage | ||||
|
||||||
