1998 Lexus SC 400FACTORY OEM SERVICE PROCEDURE
Throttle Position (TP) Sensor: Es300
- Manufacturer does not list procedure for Throttle Position (TP) sensor adjustment at time of publication. Only information available is for checking resistance of TP sensor.

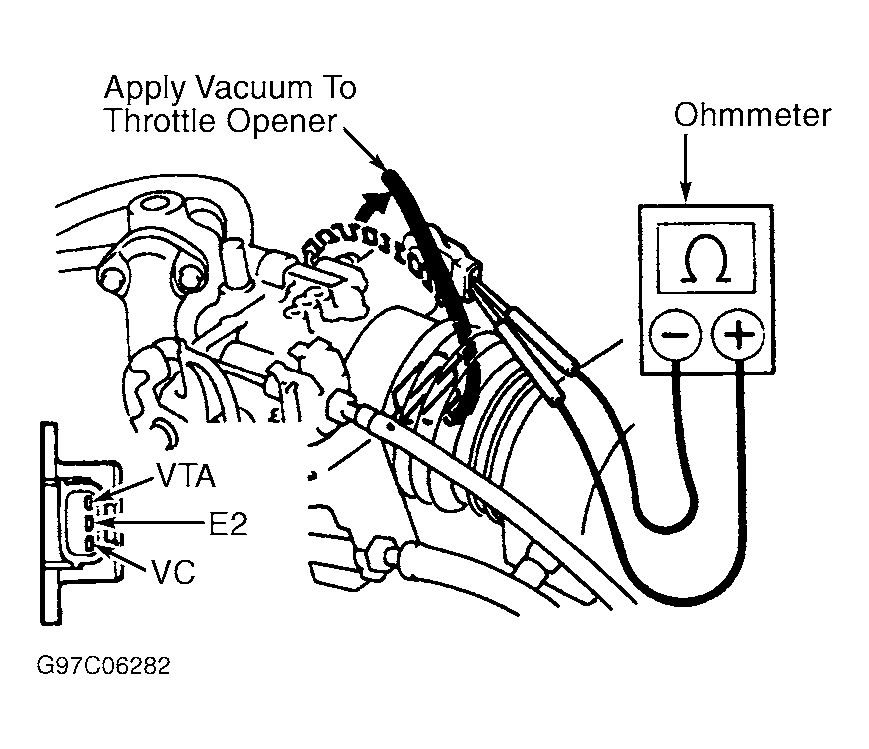

- Disconnect electrical connector from TP sensor. Note electrical terminals on TP sensor. See Fig 1. Apply vacuum to throttle opener.
- Using ohmmeter, check resistance between specified terminals in relation to throttle position. See THROTTLE POSITION SENSOR RESISTANCE (ES300) table. Replace components as necessary if resistance is not within specification.
THROTTLE POSITION SENSOR RESISTANCE (ES300) (1)
| Throttle Position | Terminals | Ohmmeter Reading | ||
|---|---|---|---|---|
| Fully Closed | VTA & E2 | 200-6,300 | ||
| Fully Open | VTA & E2 | 2,000-10,200 | ||
| " | VC & E2 | 2,500-5,900 | ||
|
||||
