Power Window Switch Continuity Test (Back Door/Tailgate): 4Runner

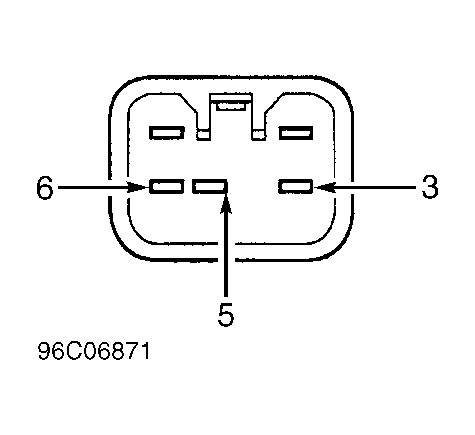

Using an ohmmeter, check continuity between specified terminals with back door/tailgate power window switch in specified position. See POWER WINDOW SWITCH CONTINUITY TEST TABLE (4RUNNER - BACK DOOR/TAILGATE) . See Fig 1. If continuity does not exist at specified terminals, replace appropriate power window switch.
| Application & Position | (1) Terminals No. | |||
|---|---|---|---|---|
| UP | 3 & 6 | |||
| OFF | None | |||
| DOWN | 3 & 5 | |||
| Switch Illumination | ||||
| UP, OFF & DOWN | 1 & 2 | |||
|
||||
