Headlight Relay

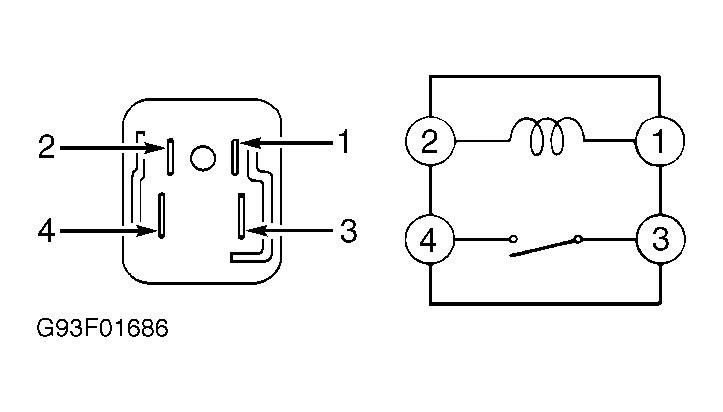

Remove headlight relay (located in junction block, on left side of engine compartment in front of shock tower). Using an ohmmeter, check continuity between relay terminals. Continuity should exist between terminals No. 1 and 2. See Fig 1. Continuity should not exist between terminals No. 3 and 4. Apply battery voltage and ground between terminals No. 1 and 2. Continuity should exist between terminals No. 3 and 4.
