1997 Lexus SC 400FACTORY OEM SERVICE PROCEDURE
Repair and Diagnosis: Electrical: Starter: Overhaul
NOTE:

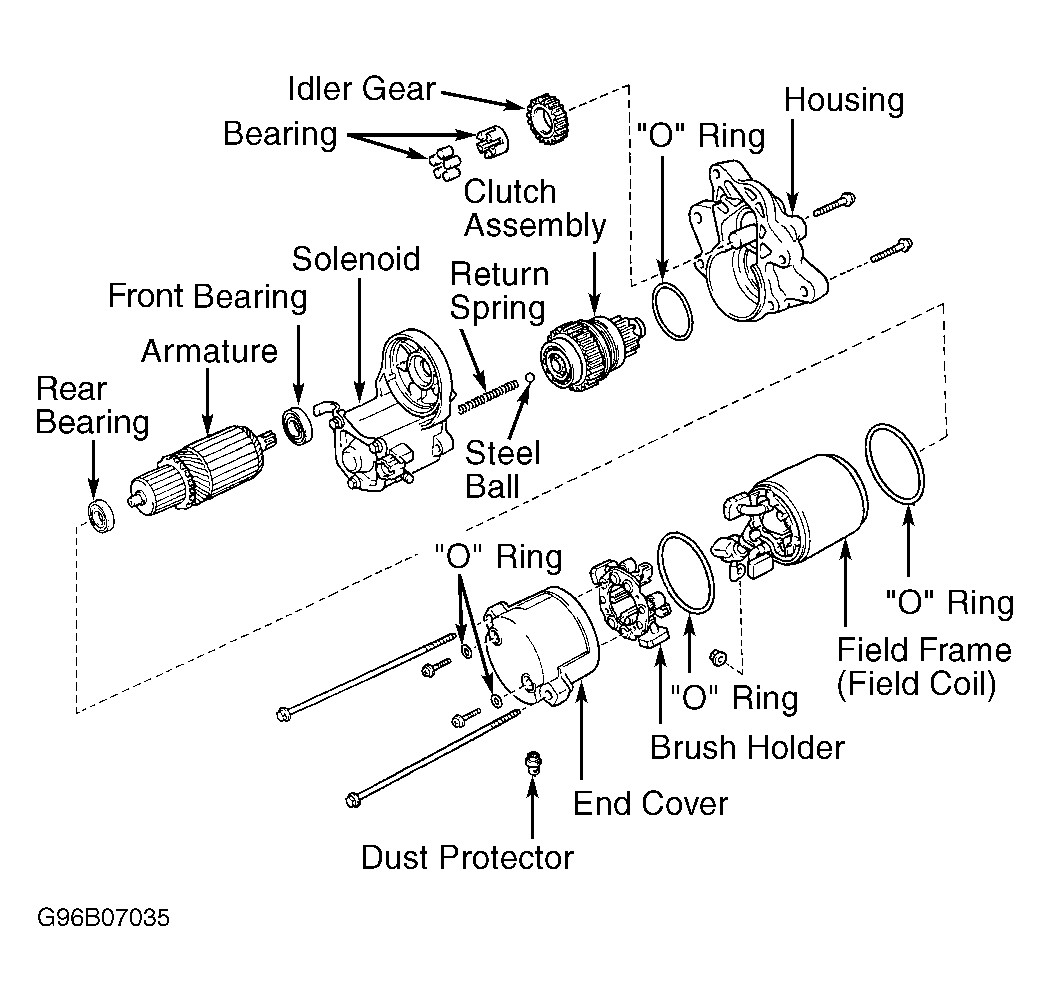

Overhaul procedures are not available at time of publication. See STARTER OVERHAUL SPECIFICATIONS table and Fig 1
.
STARTER OVERHAUL SPECIFICATIONS
| Application | Specification | |||
|---|---|---|---|---|
| Brushes | ||||
| Standard Length | .59" (15.0 mm) | |||
| Minimum Length | .35" (9.0 mm) | |||
| Brush Spring Tension | 4.8-6.2 Lbs. (2.2-2.8 kg) | |||
| Commutator Diameter | ||||
| Standard | 1.38" (35.0 mm) | |||
| Minimum | 1.34" (34.0 mm) | |||
| Commutator Mica Undercut (Minimum) (1) | .008" (.20 mm) | |||
| Commutator Runout (Maximum) | .002" (.05 mm) | |||
|
||||
