1997 Lexus SC 400FACTORY OEM SERVICE PROCEDURE
Integration Relay Circuit

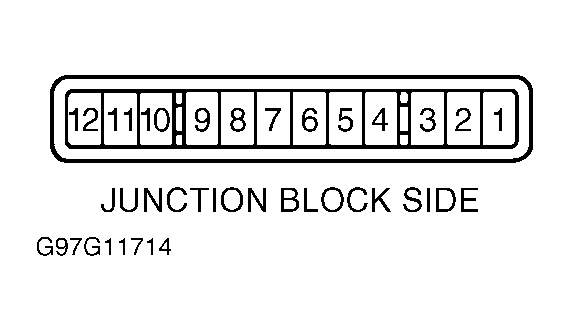

Check integration relay circuit for voltage and continuity. See INTEGRATION RELAY CIRCUIT TEST table. See Fig 1. Repair as necessary.
INTEGRATION RELAY CIRCUIT TEST
| Terminal | Condition | Value |
|---|---|---|
| A1 | Always | Battery Voltage |
| A5 | Ignition Key Out | No Continuity |
| A5 | Ignition Key In | Continuity |
| A6 | Driver Door Closed | No Continuity |
| A6 | Driver Door Open | Continuity |
| A7 | Ignition Off Or Acc | No Voltage |
| A7 | Ignition On | Battery Voltage |
| A8 | Driver Seat Belt Unfastened | No Continuity |
| A8 | Driver Seat Belt Fastened | Continuity |
| A9 | Ignition Off Or Acc | No Voltage |
| A9 | Ignition On | Battery Voltage |
| A10 | Always | Continuity |
