1997 Lexus LX 450FACTORY OEM SERVICE PROCEDURE
Toe-In Adjustment

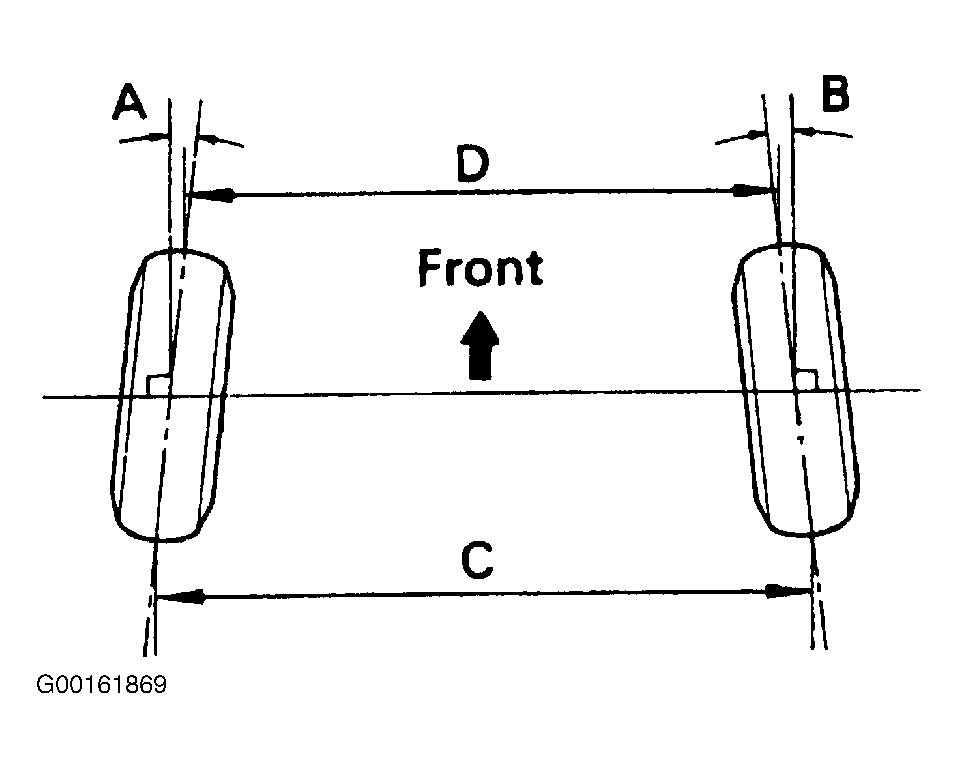

- Inspect toe-in. If toe-in is not within specification, adjust by the tie rod end. See Fig 1 and Figure .

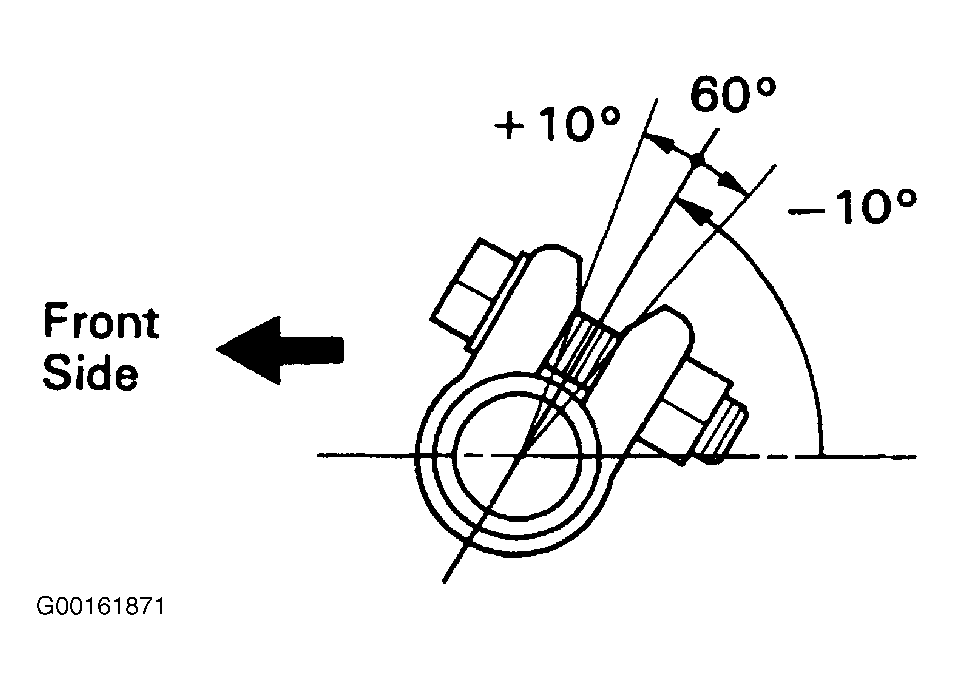

- Adjust toe-in. Loosen the clamp bolts and nuts. Adjust toe-in to the correct value by turning the tie rod. See Fig 3. The clamps opening must be positioned at the rear of the tie rod and face within 60° +/- 10° from the vehicle axis. See Fig 2. Torque the clamp bolts and nuts.
NOTE:

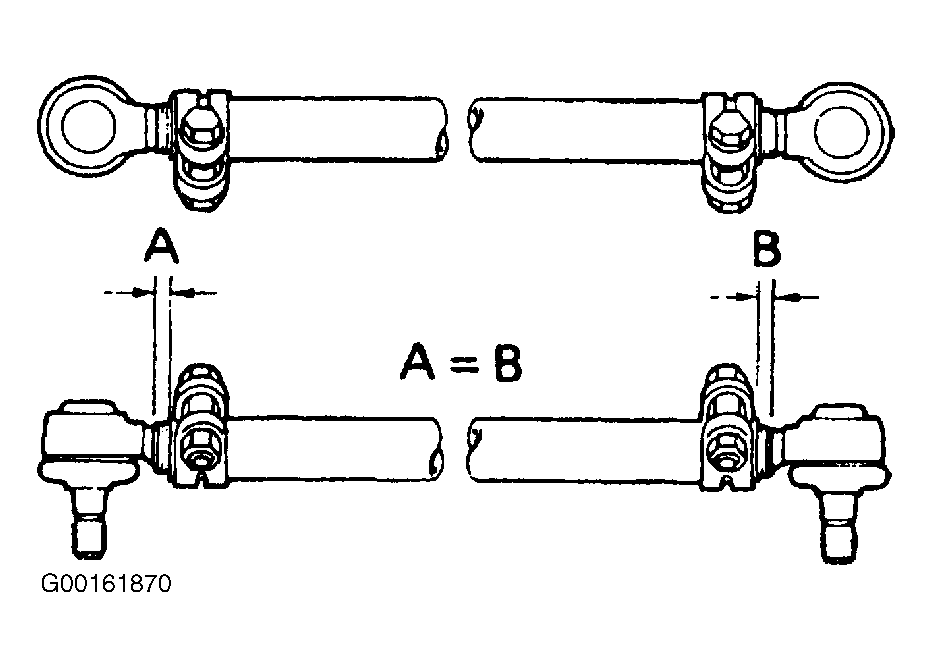

Make sure that the length of the left and right tie rod ends are the same.
