1996 Lexus SC 400FACTORY OEM SERVICE PROCEDURE
Throttle Controls: Dashpot

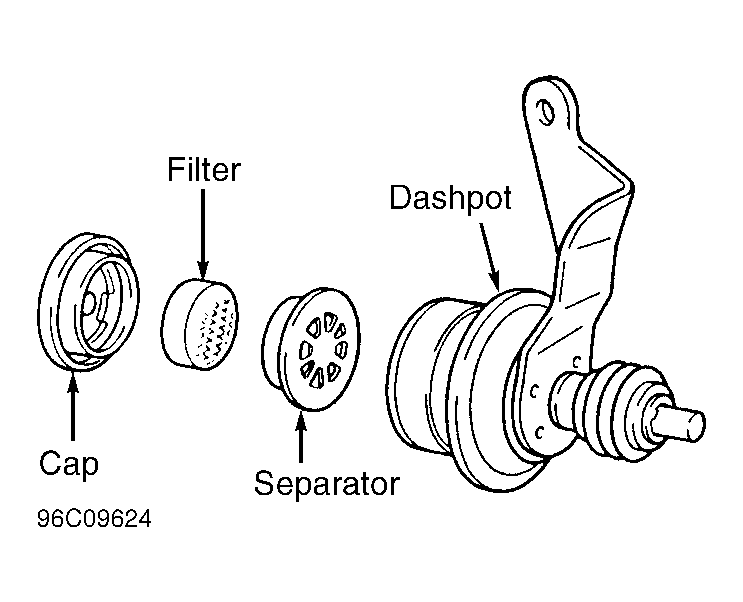

- Run engine at operating temperature. Ensure idle speed is 650-750 RPM. See CONNECTING TACHOMETER under ENGINE/VIN ID article. Turn off engine. Remove cap, filter and separator from end of dashpot. See Fig 1. Start engine. Increase engine speed to 4000 RPM. Ensure coolin g fan is not running.
- Fully extend dashpot rod by using finger to cover hole inside area where separator was installed in dashpot. Release throttle. If engine speed is not 2500 RPM, turn dashpot adjusting screw as necessary. Installing separator, filter (coarse side up) and cap.
