Connect scan tester to Data Link Connector (DLC) No. 3. See Fig 1. DLC No. 3 is located in fuse box at lower left of instrument panel. Turn ignition on with engine off. Turn scan tester on. Using scan tester manufacturer's instructions, check for DTCs and freeze-frame data.
If scan tester displays UNABLE TO CONNECT TO VEHICLE, DLC No. 3 must be checked. See DLC NO. 3 INSPECTION under SCAN TESTER PROBLEMS. If scan tester does not display UNABLE TO CONNECT TO VEHICLE, go to next step.
Record any DTCs and freeze-frame data displayed for system diagnosis. If driveability problem exists and no DTCs are present, go to TROUBLE SHOOTING - NO CODES article for diagnosis bysymptom.
If any DTCs are present, perform appropriate circuit test. See DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION table. For more information on freeze-frame data, see FREEZE-FRAME DATA under INTRODUCTION. For information on 2-trip detection logic codes, see TWO-TRIP DETECTION LOGIC under INTRODUCTION.
After repairs for DTC have been completed, DTCs must be cleared from ECM memory. See CLEARING DIAGNOSTIC TROUBLE CODES .

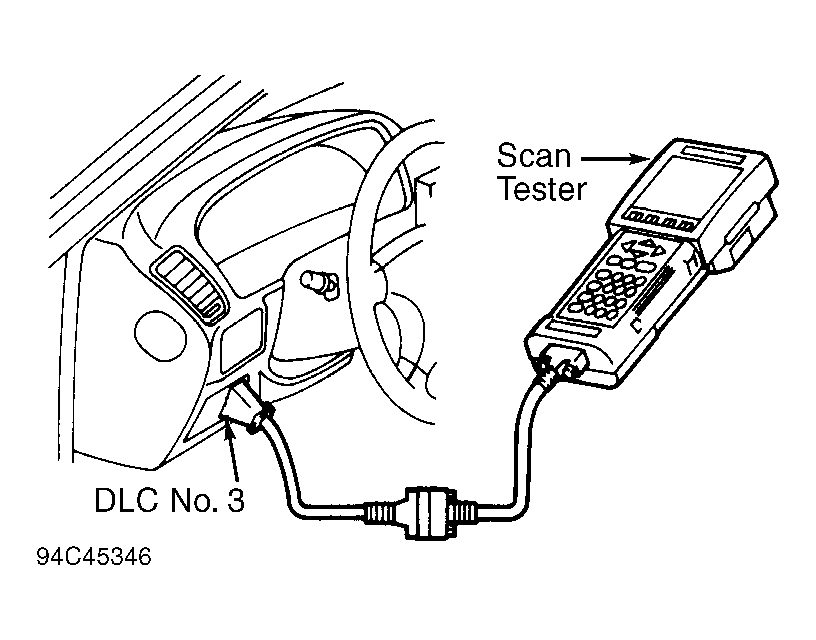

Fig 1: Connecting Scan Tester To DLC No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
