Park/Neutral Position (PNP) Switch Test

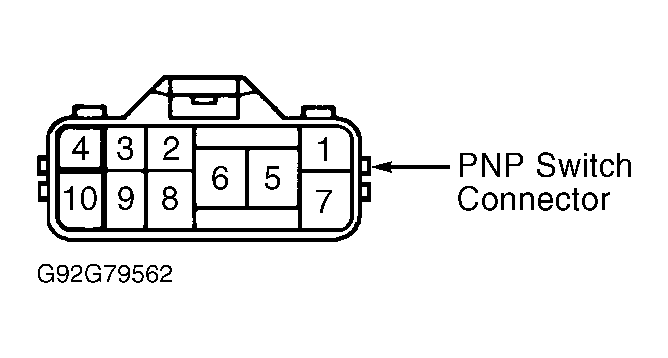

Disconnect park/neutral position switch connector. See ELECTRICAL COMPONENT LOCATIONS under DESCRIPTION & OPERATION. Check for continuity between specified terminals of park/neutral position switch. See PARK/NEUTRAL POSITION (PNP) SWITCH CONTINUITY SPECIFICATIONS table. See Fig 1. If continuity is not as specified, replace park/neutral position switch.
| Gearshift Position | Continuity Between Terminals |
|---|---|
| P | 5 & 6; 4 & 7 |
| R | 4 & 8 |
| N | 5 & 6; 4 & 10 |
| D | 4 & 9 |
| 2 | 2 & 4 |
| L | 3 & 4 |
