1996 Lexus SC 400FACTORY OEM SERVICE PROCEDURE
Horn Switch Test

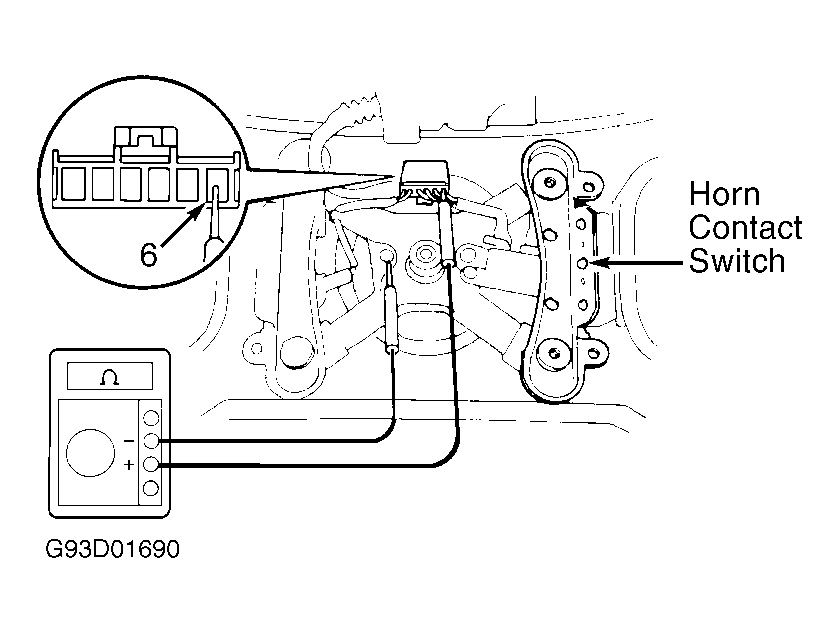

- Disconnect negative battery cable. At sides of steering wheel, remove covers, then loosen Torx screws that secure air bag module to steering wheel. Lift out air bag module and place it on top of steering column (leave connector attached). Disconnect 6-pin connector from combination switch. See Fig 1.
- Connect ohmmeter between chassis ground and terminal No. 6 of the 6-pin connector (backprobe the terminal). There should be no continuity. Press horn contact plate against steering wheel spoke. There should be continuity. If continuity is not as specified, replace steering wheel or harness as necessary.
