Defogger Relay Test

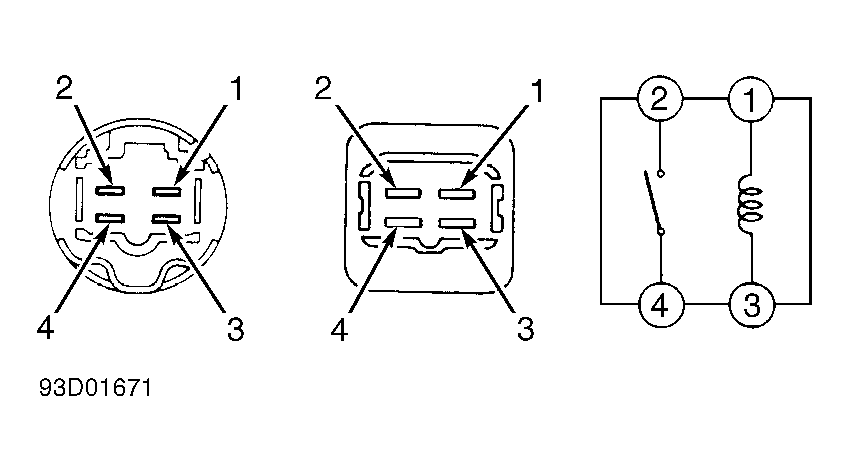

Remove relay from left side of engine compartment, in fuse/relay block No. 2. Replace relay if it does not test as follows. See Fig 1.
- There should be no continuity between terminals No. 2 and 4.
- Apply battery voltage across terminals No. 1 and 3. There should be continuity between terminals No. 2 and 4.
