1995 Lexus SC 400FACTORY OEM SERVICE PROCEDURE
Ignition System: Distributor: Installation
WARNING: This page is about a different car, the 1995 Lexus SC 300. However, it is still accessible from the selected car via links, so may be relevant.

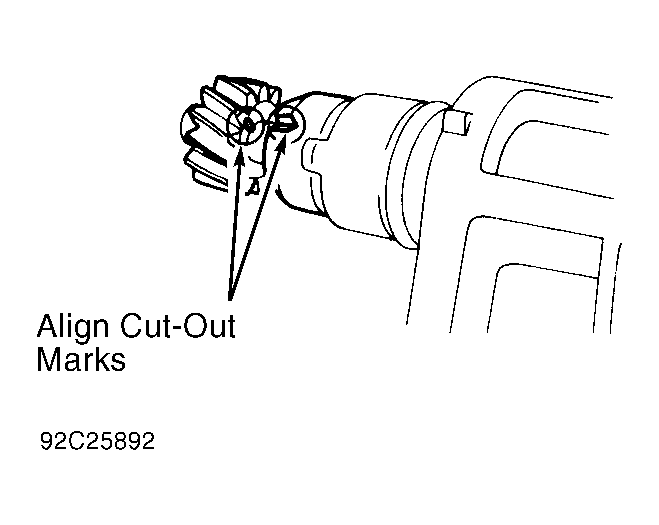

- Install NEW "O" ring seal to distributor shaft and lightly coat with oil. Align protrusion on drive gear with groove in distributor housing. Insert distributor, aligning stud in cylinder head with center of flange slot. See Fig 1 and Fig 2 . Lightly tighten hold-down nut.
- Connect spark plug and coil wires to distributor cap. Check ignition timing. See ADJUSTMENTS article. Tighten distributor hold-down nut to specification. See TORQUE SPECIFICATIONS.
