1995 Lexus SC 400FACTORY OEM SERVICE PROCEDURE
Connector Identification
CONNECTOR IDENTIFICATION
| Description | Illustration |
|---|---|

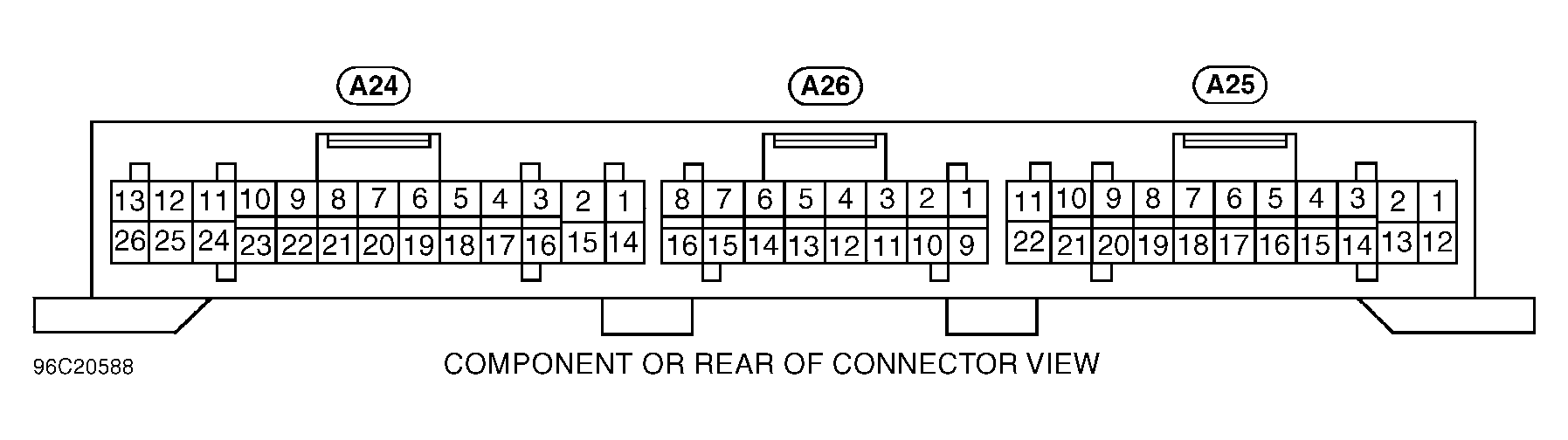

| ABS Electronic Control Unit | See Fig 1 |
| Check Harness | See Fig 2 |
| Electronic Control Module (ECM) | See Fig 3 |
| Sub-Throttle Actuator | See Fig 4 |
| TRAC Actuator | See Fig 5 |
| TRAC Electronic Control Unit | See Fig 6 |
| TRAC Pump Motor | See Fig 7 |
| Throttle Valve Motor Driver | See Fig 8 |
