1995 Lexus SC 300 AutomaticFACTORY OEM SERVICE PROCEDURE
ACIS System Check

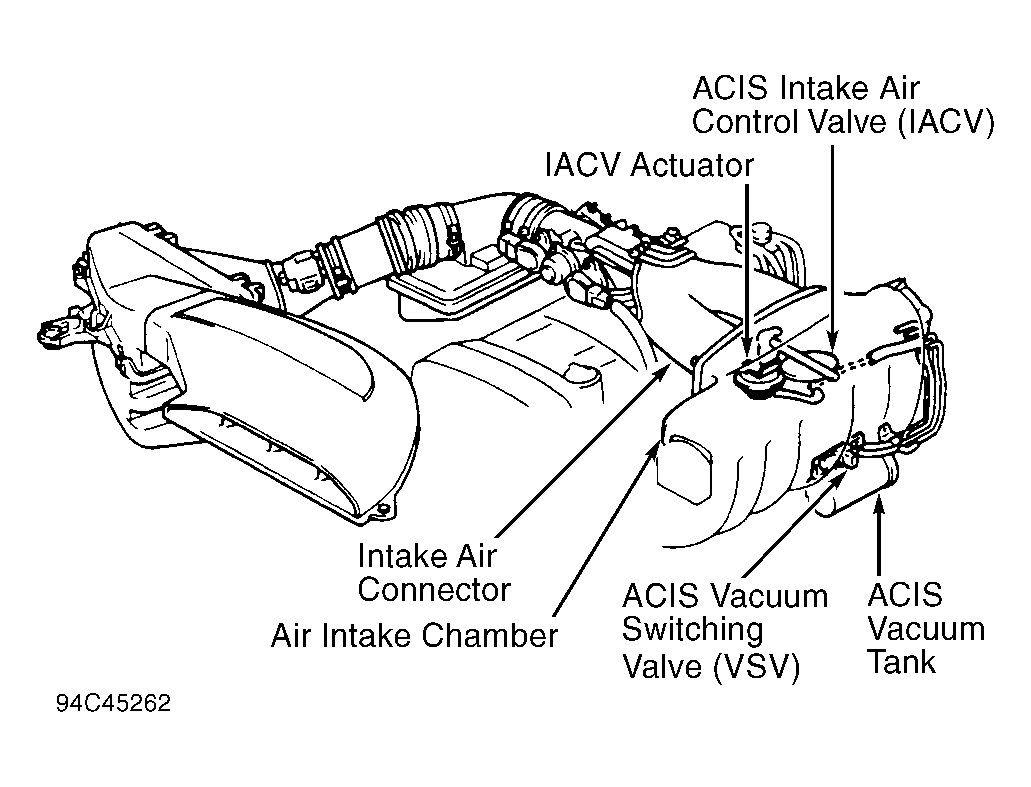

- Connect vacuum gauge between IACV actuator and VSV. See Fig 1. See COMPONENT LOCATIONS under INTRODUCTION. Start engine. With engine idling, gauge needle should indicate no vacuum.
- While snapping throttle fully open and releasing it, IACV actuator rod should move, and gauge needle should quickly fluctuate to the following specification:
- About 10 in. Hg or more.
- System is okay if it operates as specified. If system does not operate as specified, perform ACIS CIRCUITS test.
