Ensure engine is at normal operating temperature. Keep engine speed at idle. Ensure idle speed is within specification. See IDLE SPEED SPECIFICATIONS table under IDLE SPEED & MIXTURE. Jumper terminals TE1 and E1 of DLC No. 1. See Fig 1. Connect timing light magnetic pick-up to spark plug wire for cylinder No. 6.
Ensure base timing is within specification. See IGNITION TIMING table. If base timing is within specification, procedure is complete. If base timing is not within specification, check for one or more of the following conditions. Repair as necessary.
- Throttle valve is being prevented from fully closing.
- Throttle position sensor is misadjusted (indicated by no continuity between terminals IDL1 and E2 of throttle position sensor connector). See THROTTLE POSITION (TP) SENSOR .
- Valve timing is incorrect (timing belt is not correctly installed).

IGNITION TIMING (Degrees BTDC @ RPM)

Application

⁽¹⁾ Base Timing

⁽²⁾ Controlled Timing

LS400

8-12 @ 650-750

⁽³⁾

⁽¹⁾	Jumper wire connected between terminals TE1 and E1 of DLC No. 1. See Fig 1.

⁽²⁾	Jumper wire disconnected from DLC.

⁽³⁾	Information is not available from manufacturer.

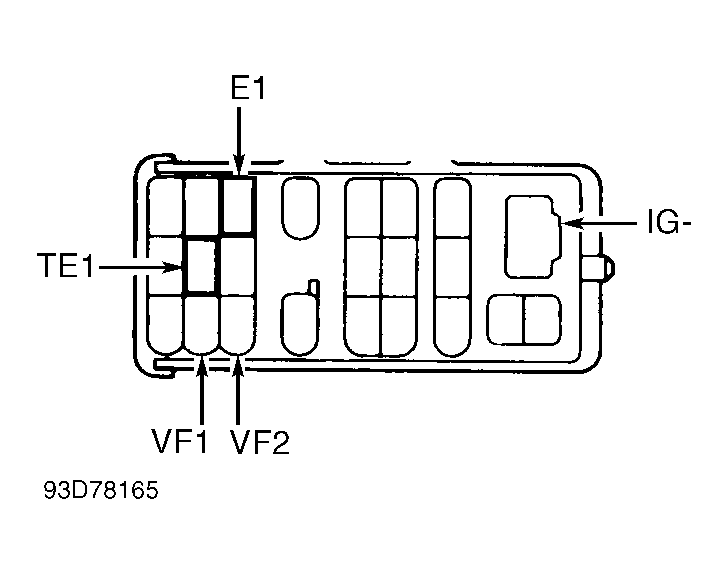

Fig 1: Identifying Terminals Of Data Link Connector (DLC) No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
