1994 Lexus SC 400FACTORY OEM SERVICE PROCEDURE

Repair and Diagnosis: Electrical: Starter: Overhaul

NOTE: Overhaul procedures are not available from manufacturer. See STARTER OVERHAUL SPECIFICATIONS table and Fig 1 .

STARTER OVERHAUL SPECIFICATIONS

Application

Specification

Brushes

Standard Length

.59" (15.0 mm)

Minimum Length

.35" (9.0 mm)

Brush Spring Tension

4.0-7.8 Lbs. (1.8-3.6 kg)

Commutator Diameter

Standard

1.38" (35.0 mm)

Minimum

1.34" (34.0 mm)

Commutator Mica Undercut ⁽¹⁾ (Minimum)

.008" (.20 mm)

Commutator Runout (Maximum)

.002" (.05 mm)

⁽¹⁾	Depth of groove between each segment of commutator.

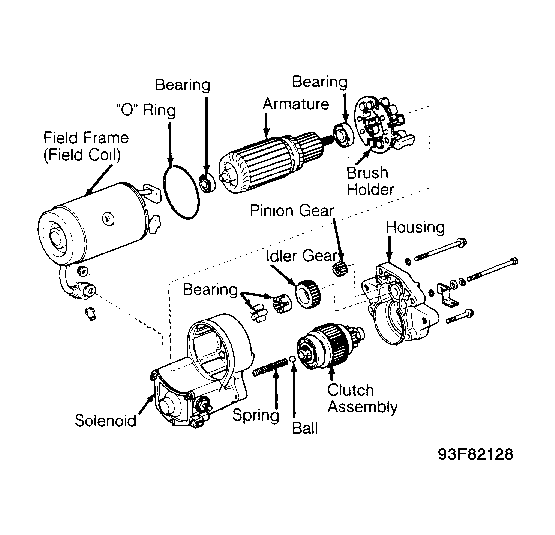

Fig 1: Exploded View Of Starter Assembly (SC400)
