Remove fuel injector. Connect Injection Measuring Tool Set (9268-41045). See Fig 1. Attach a piece of vinyl tubing to bottom of fuel injector to prevent fuel splash. Put vinyl tubing into a graduated measuring cylinder.
Connect Jumper Wire (00843-18020) between terminals +B and FG of DLC No. 1. See Figure. Reconnect negative battery cable. Turn ignition on, engine off. Connect EFI Inspection Wiring (09842-30070) between fuel injector and a 12-volt battery for 15 seconds.
Compare measured volume with specified volume. See FUEL INJECTOR VOLUME (15 SECONDS) table. Replace injector if one or more of the following conditions exists:
- Volume is not within specification
- Difference in volume between injectors exceeds specification
- More than one drop leaks from injector within one minute of disconnecting EFI inspection wiring from battery.

FUEL INJECTOR VOLUME (15 SECONDS)

Application	Cu. In. (cc)
Volume	3.3-3.9 (54-64)
Difference Between Injectors	0.3 (5)

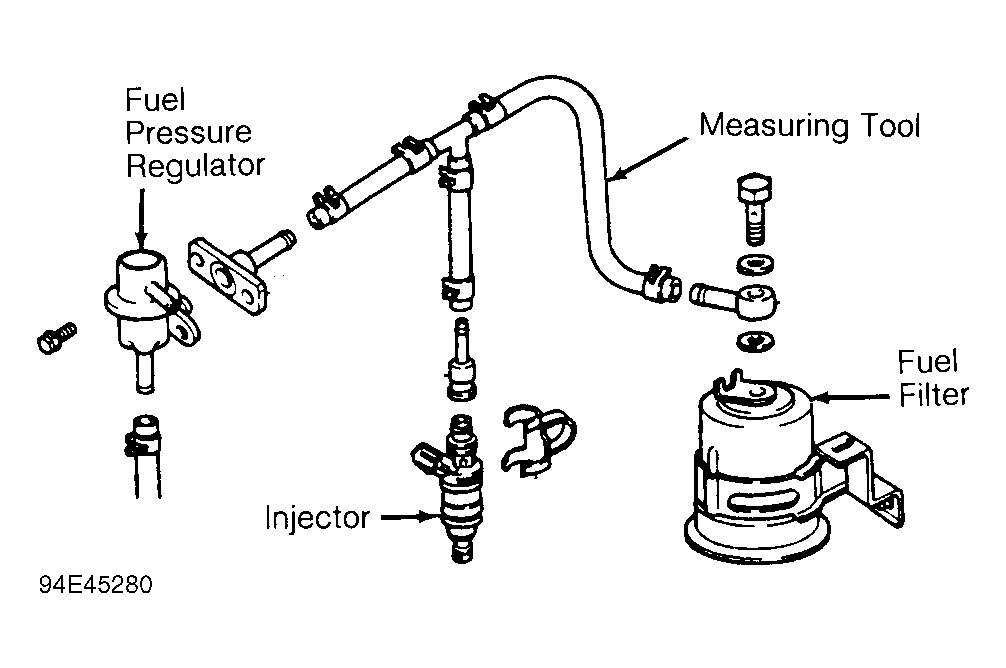

Fig 1: Connecting Fuel Injection Measuring Tool Set (ES300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
