Abs Control Relay Test

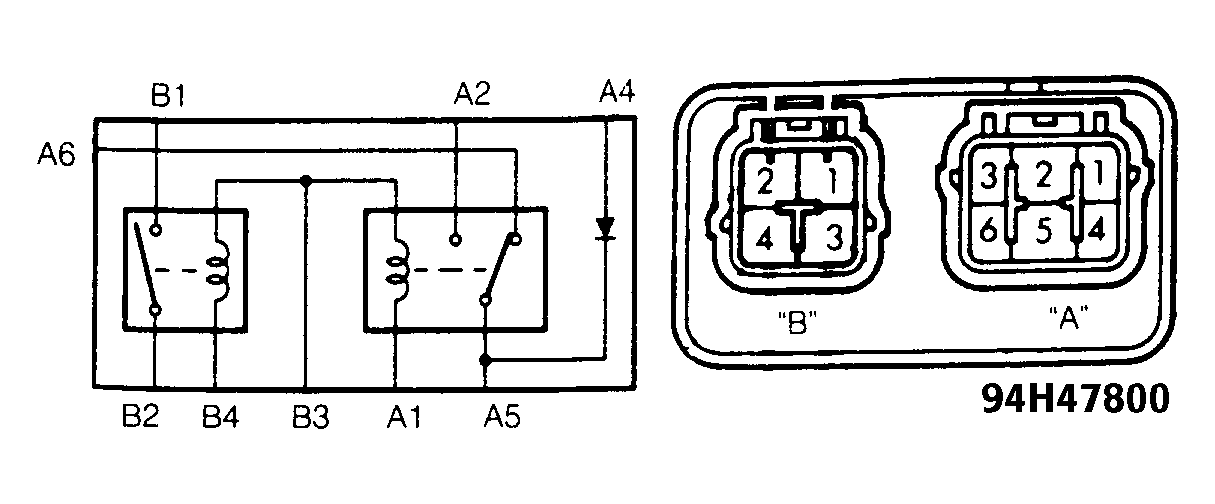

Disconnect ABS control relay connectors. Check for continuity (or resistance) between specified terminals. See appropriate ABS CONTROL RELAY TEST table. See Fig 1. If continuity or resistance is not as specified, replace control relay.
| Terminals (1) | Specification | ||||
|---|---|---|---|---|---|
| A1 & B3 | 80 Ohms | ||||
| A5 & A6 | Continuity | ||||
| A2 & A5 | No Continuity | ||||
| A5 (+) & A4 (-) | (2) Apply 12 Volts Between A1 & B3 | ||||
| A5 & A6 | No Continuity | ||||
| A2 & A5 | Continuity | ||||
|
|||||
| Terminals (1) | Specification | ||
|---|---|---|---|
| B3 & B4 | 62 Ohms | ||
| B1 & B2 | No Continuity Apply 12 Volts Between B3 & B4 | ||
| B1 & B2 | Continuity | ||
|
|||
