1993 Lexus LS 400FACTORY OEM SERVICE PROCEDURE
Normal Mode
- Normal mode is used for routine testing of vehicle. To read diagnostic trouble codes, ensure battery voltage is at least 11 volts, throttle valve is fully closed, transaxle/transmission is in Neutral and all accessories are off.

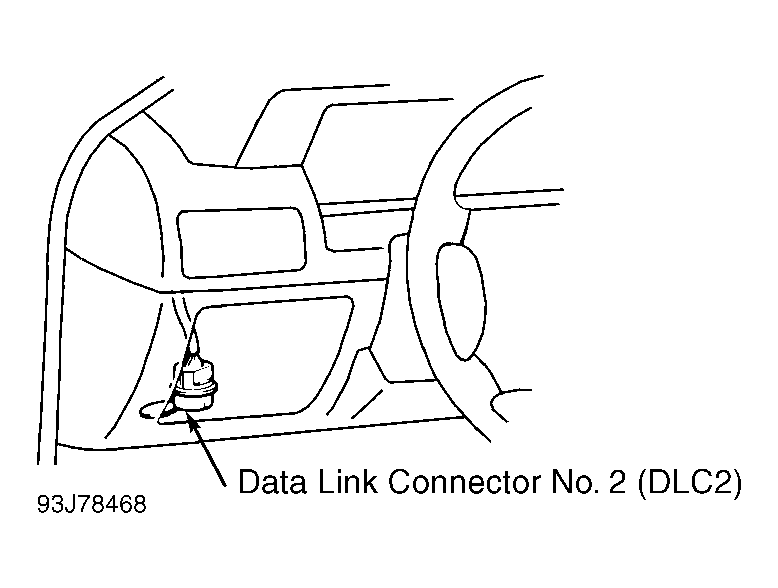

- All models are equipped with 2 Data Link Connectors (DLCs). Data Link Connector No. 1 (DLC1) is located in engine compartment. Data Link Connector No. 2 (DLC2) is located under left side of instrument panel. See Fig 1. Codes can be retrieved by using DLC1 or DLC2.
- To retrieve codes, turn ignition on. DO NOT start engine. Using a jumper wire, connect terminals E1 and TE1 together either on DLC1 or DLC2. See Fig 2. Count number of flashes from Malfunction Indicator Light (MIL).
