1992 Lexus SC 400FACTORY OEM SERVICE PROCEDURE
Repair and Diagnosis: Electrical: Starter: Overhaul
NOTE:

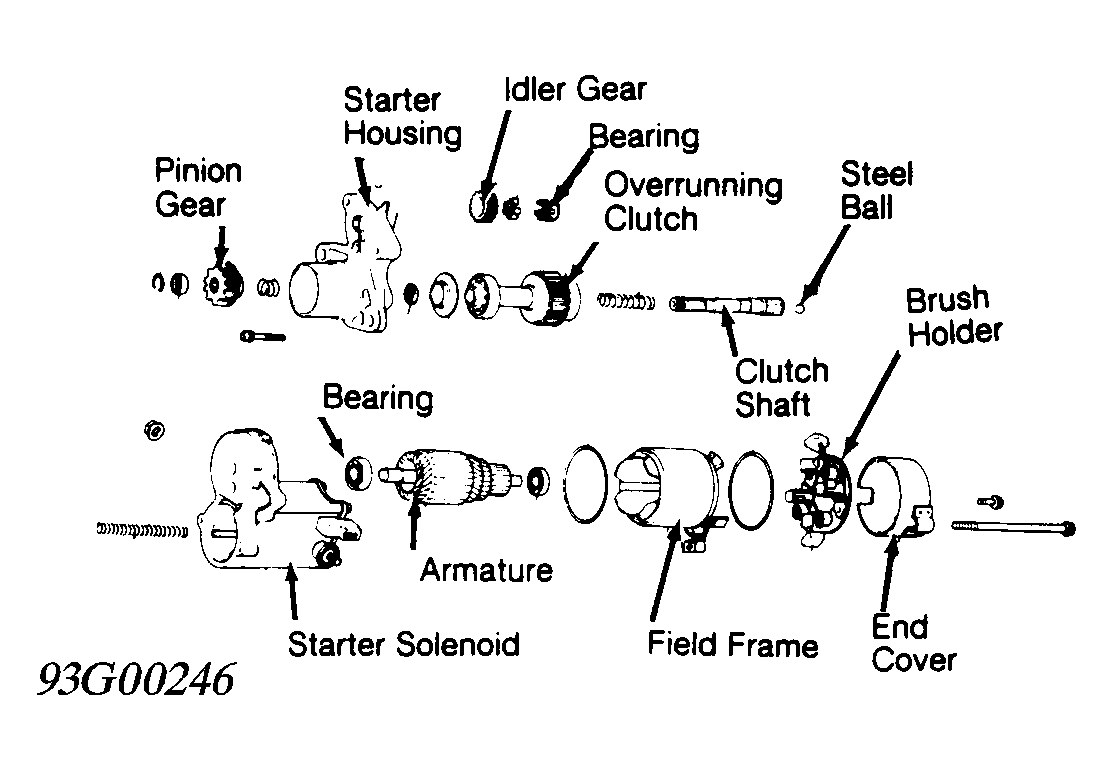

Overhaul procedures are not available from manufacturer. See STARTER OVERHAUL SPECIFICATIONS table and Figure-12
.
STARTER OVERHAUL SPECIFICATIONS (ES300 & SC300)
| Application | Specification |
|---|---|
| Brush Length (Limit) | .394" (10.0 mm) |
| Brush Spring Tension | 3.9-5.3 Lbs. (1.8-2.4 kg) |
| Commutator Diameter (Minimum) | 1.142" (29.0 mm) |
| Commutator Runout (Maximum) | .002" (.05 mm) |
STARTER OVERHAUL SPECIFICATIONS (LS400 & SC400)
| Application | Specification |
|---|---|
| Brush Length (Limit) | .374" (9.5 mm) |
| Brush Spring Tension | 6.0-7.3 Lbs. (2.7-3.3 kg) |
| Commutator Diameter (Minimum) | 1.339" (34.0 mm) |
| Commutator Runout (Maximum) | .002" (.05 mm) |
