1992 Lexus SC 400FACTORY OEM SERVICE PROCEDURE
Using An Ammeter With A Current-Measuring Probe
- Remove the master switch with connector connected.

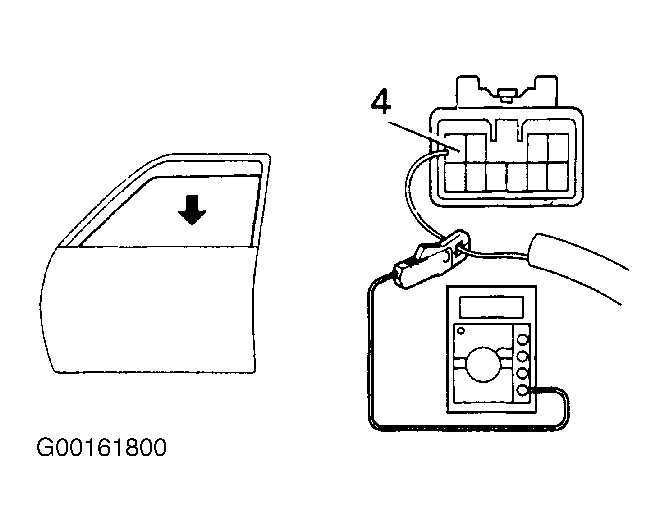

- Attach a current measuring probe to terminal 4 of the wire harness. See Fig 1.
- Turn the ignition switch ON and set the power window switch in the down position.

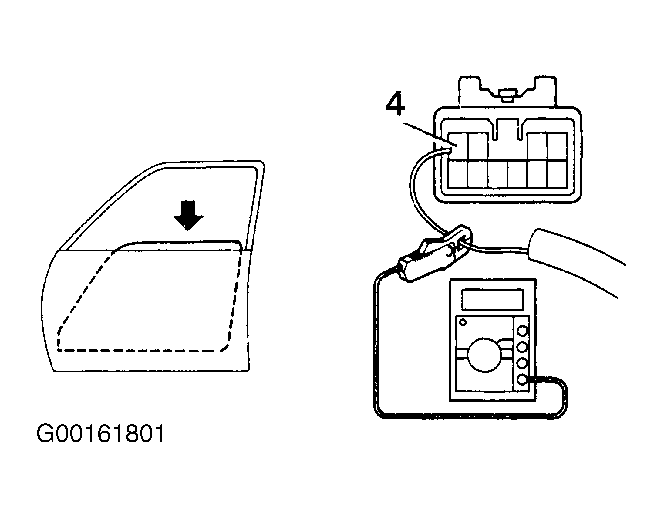

- As the window goes down, check that the current flow is approximately 7 amperes. See Fig 2.
