1992 Lexus SC 400FACTORY OEM SERVICE PROCEDURE
Using An Ammeter
- Disconnect the connector from the master switch.

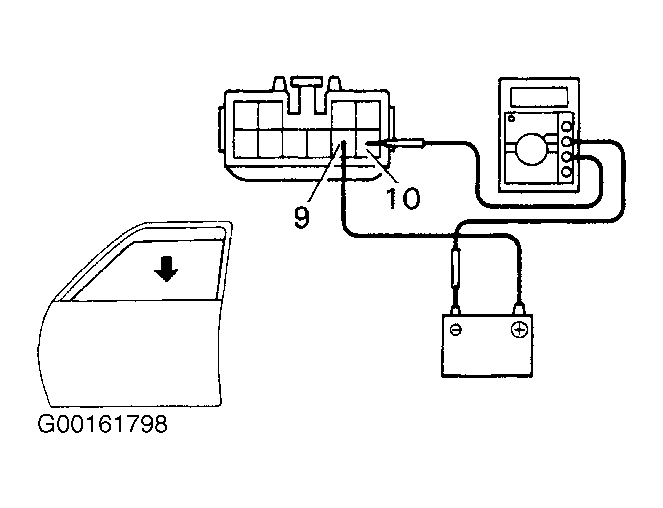

- Connect the positive (+) lead from the ammeter to terminal 9 on the wire harness side of the connector and the negative (-) lead to negative terminal of the battery. See Fig 1.
- Connect the positive (+) lead from the battery to terminal 10 on the wire harness side of the connector. See Fig 1.
- As the window goes down, check that the current flow is approximately 7 amperes. See Fig 2.
