1992 Lexus LS 400FACTORY OEM SERVICE PROCEDURE
Circuit Opening Relay
NOTE:
For more information, refer to FUEL SYSTEM CIRCUIT diagnostic chart at end of article.

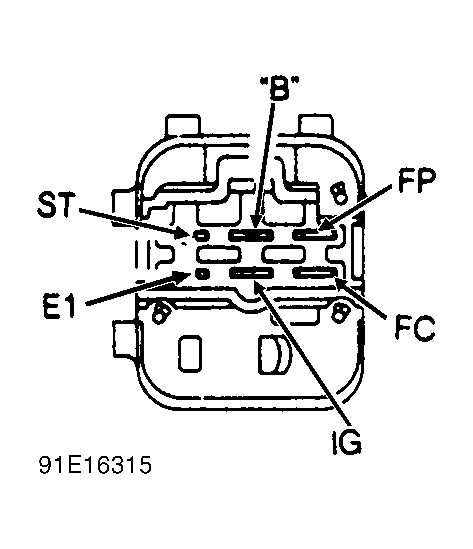

- Turn ignition off. Circuit opening relay is located under right side of instrument panel, above glove box. Remove relay from vehicle. Using an ohmmeter, check for continuity between relay terminals ST and E1. See Fig 1. Check for continuity between terminals IG and FC. Ensure continuity does not exist between terminals "B" and FP. If continuity is not as specified, replace relay.
- Apply battery voltage between terminals IG and FC. Using an ohmmeter, ensure continuity is present between terminals "B" and FP.
