No-Load Test

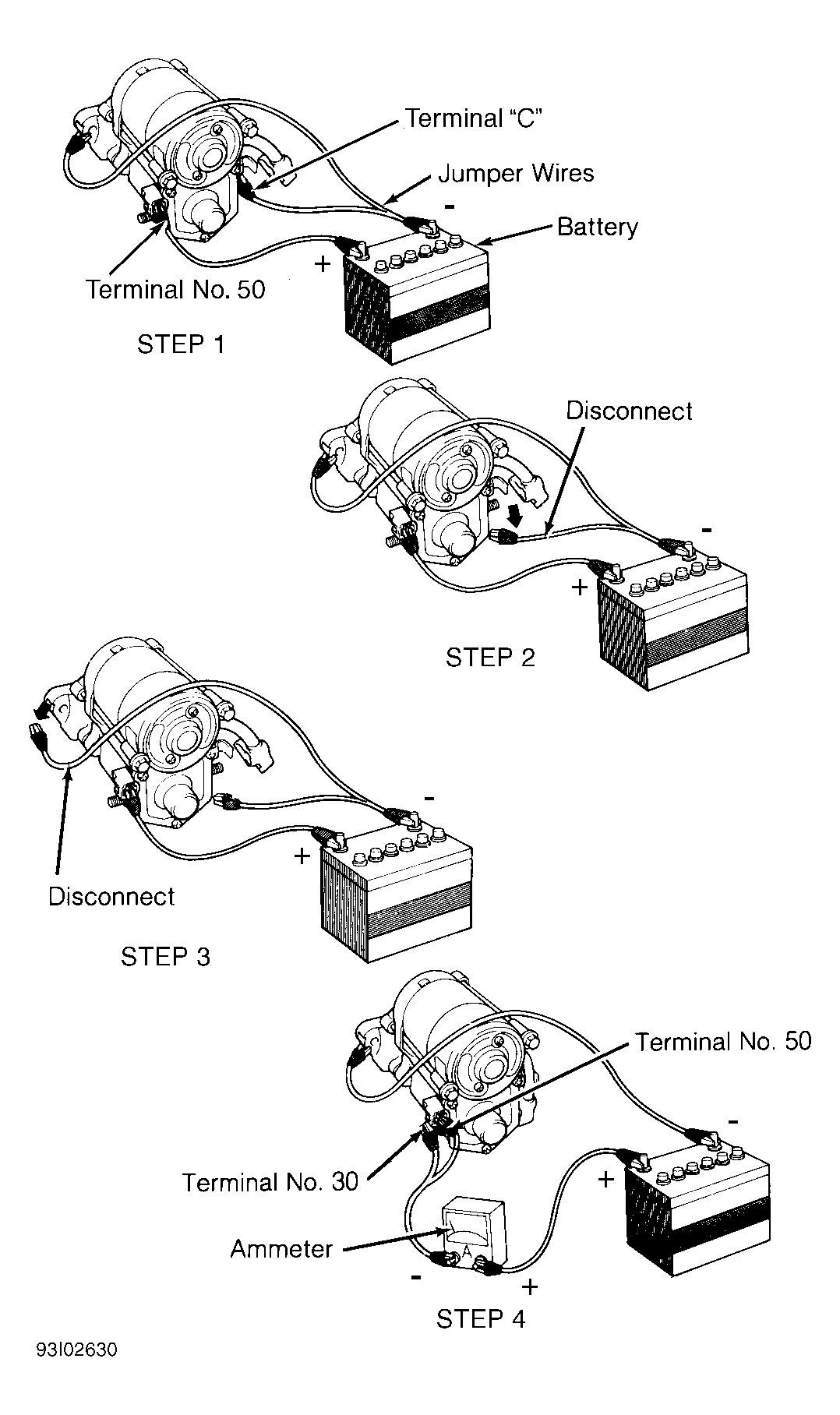

Using jumper wires, connect starter terminal "C", terminal No. 30 and terminal No. 50 to battery. See Fig 1. Under no-load test, starter armature should rotate steadily. See NO-LOAD TEST SPECIFICATIONS table.
| Application | Maximum Amps & Minimum RPM | Volts |
|---|---|---|
| ES300 | 90 @ 3000 | 11.5 |
| LS400 | 120 @ 4000 | 11.5 |
| SC300 | 120 @ 3300 | 11.5 |
| SC400 | 90 @ 3500 | 11.5 |
