1992 Lexus LS 400FACTORY OEM SERVICE PROCEDURE
Starter Relay

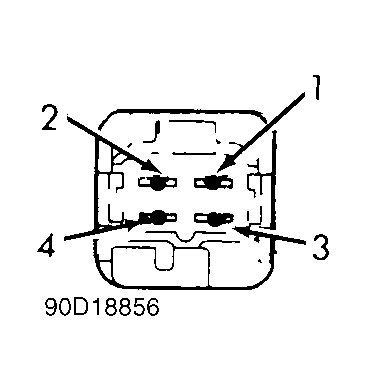

- Starter relay is located in junction block No. 2 in left side of engine compartment. Remove starter relay. Use an ohmmeter and check for continuity between starter relay terminals No. 1 and 3.
- Ensure no continuity is present between relay terminals No. 2 and 4. If continuity is not as specified, replace relay. Apply battery voltage between relay terminals No. 1 and 3. Using an ohmmeter, check for continuity between relay terminals No. 2 and 4.
