Ignition Coils

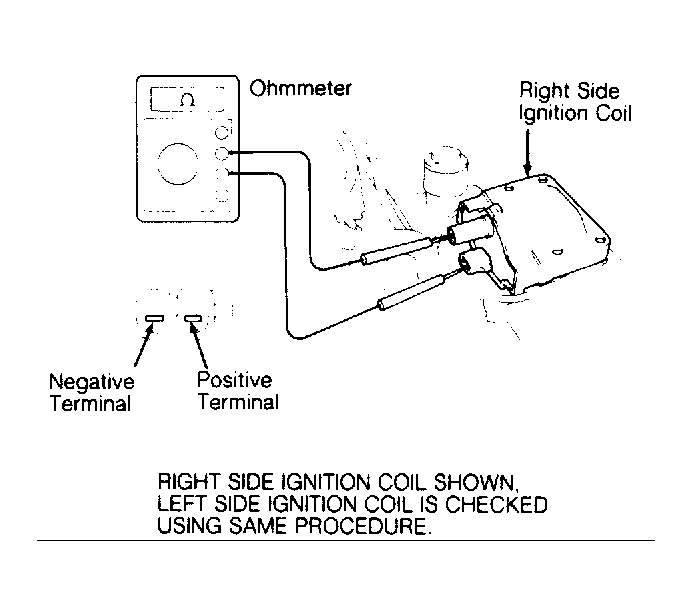

Turn ignition off. Disconnect wires from ignition coil. Using an ohmmeter, check primary coil resistance on ignition coil. See Fig 1. For resistance specifications, see IGNITION COIL RESISTANCE table.
| Application | (1) Ohms | ||
|---|---|---|---|
| Primary Circuit | .30-.60 | ||
| Secondary Circuit | 9000-15,000 | ||
|
|||
